Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
Fork: Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Weight: ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Battery: SRAM AXS battery pack (with charger)
Shifter: SRAM Apex AXS, 12 speed
Rear derailleur: SRAM Apex XPLR eTap AXS, 44T max cog
*Crank
Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165mm length
Size: M
SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: ML, L
SRAM Apex 1, 40T, DUB Wide, 172.5mm length
Size: XL
SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
Cassette: SRAM XPLR PG-1231, 11-44, 12 speed
Chain: SRAM Apex, 12 speed
Max chainring size: 1x:44 2x: 46/30
Wheel front: Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Wheel rear: Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and -nipples
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tire: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Tire part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tire size: 50mm without fenders, 42mm with fenders (as measured, see manual for details)
*Saddle
Size: XS, S
Verse Short Comp, steel rails, 155mm width
Size: M, ML, L, XL
Verse Short Comp, steel rails, 145mm width
Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length
*Handlebar
Size: XS
Bontrager Elite Gravel, alloy, 40cm width
Size: S, M
Bontrager Elite Gravel, alloy, 42cm width
Size: ML, L
Bontrager Elite Gravel, alloy, 44cm width
Size: XL
Bontrager Elite Gravel, alloy, 46cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem
Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: M, ML
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor: SRAM Paceline, rounded, centerlock, 160mm
Rotor size: Max brake rotor sizes: 180mm front & rear

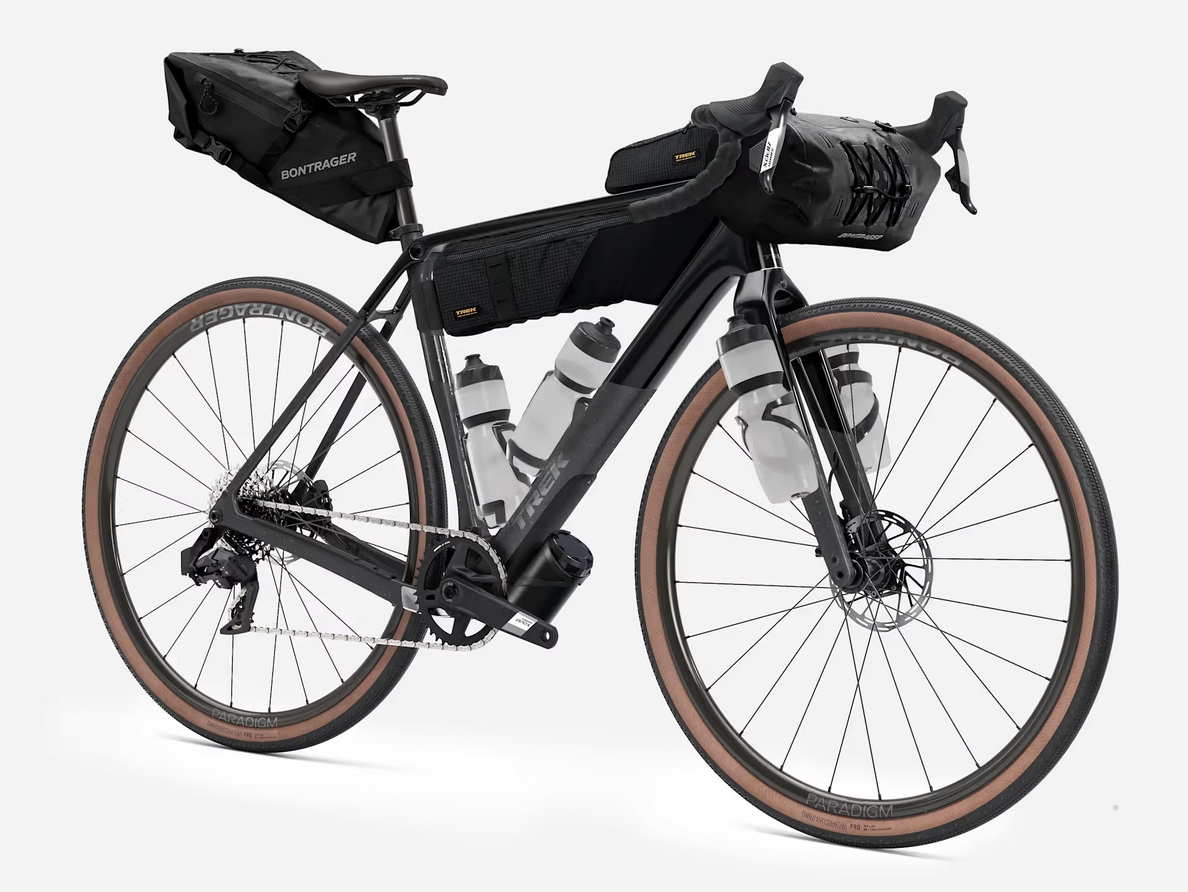

Bag: Bontrager BITS Internal Frame Storage Bag
TREK reserves the right to change specifications without notice. Photos are for illustrative purposes only.
