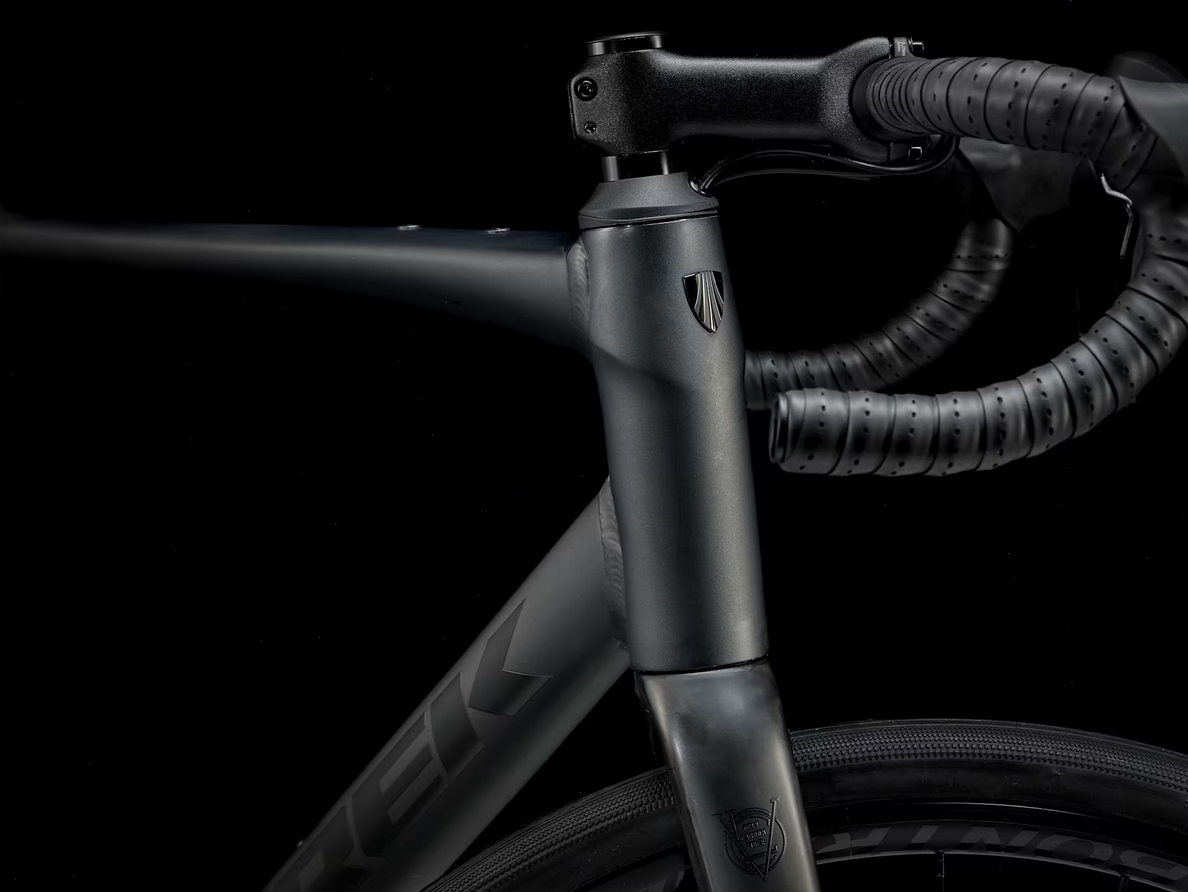

Frame : 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

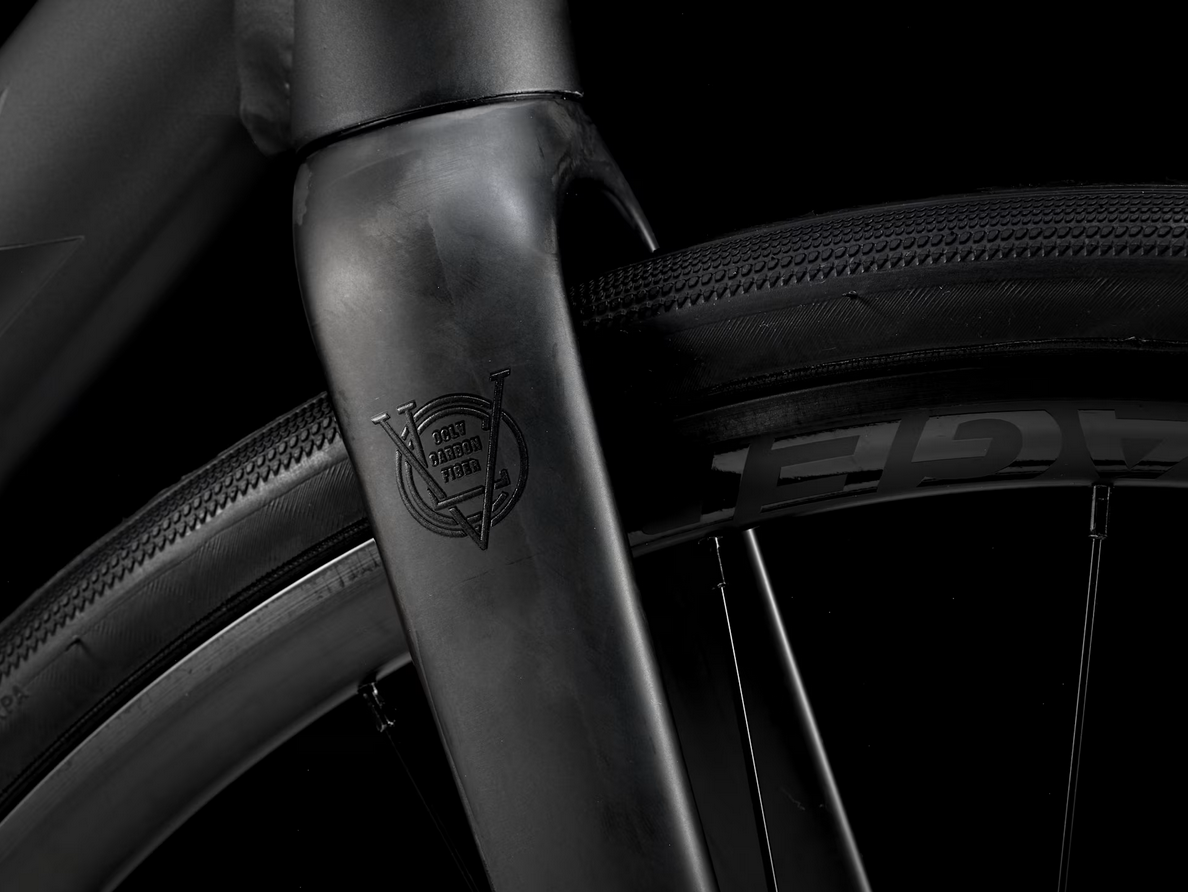

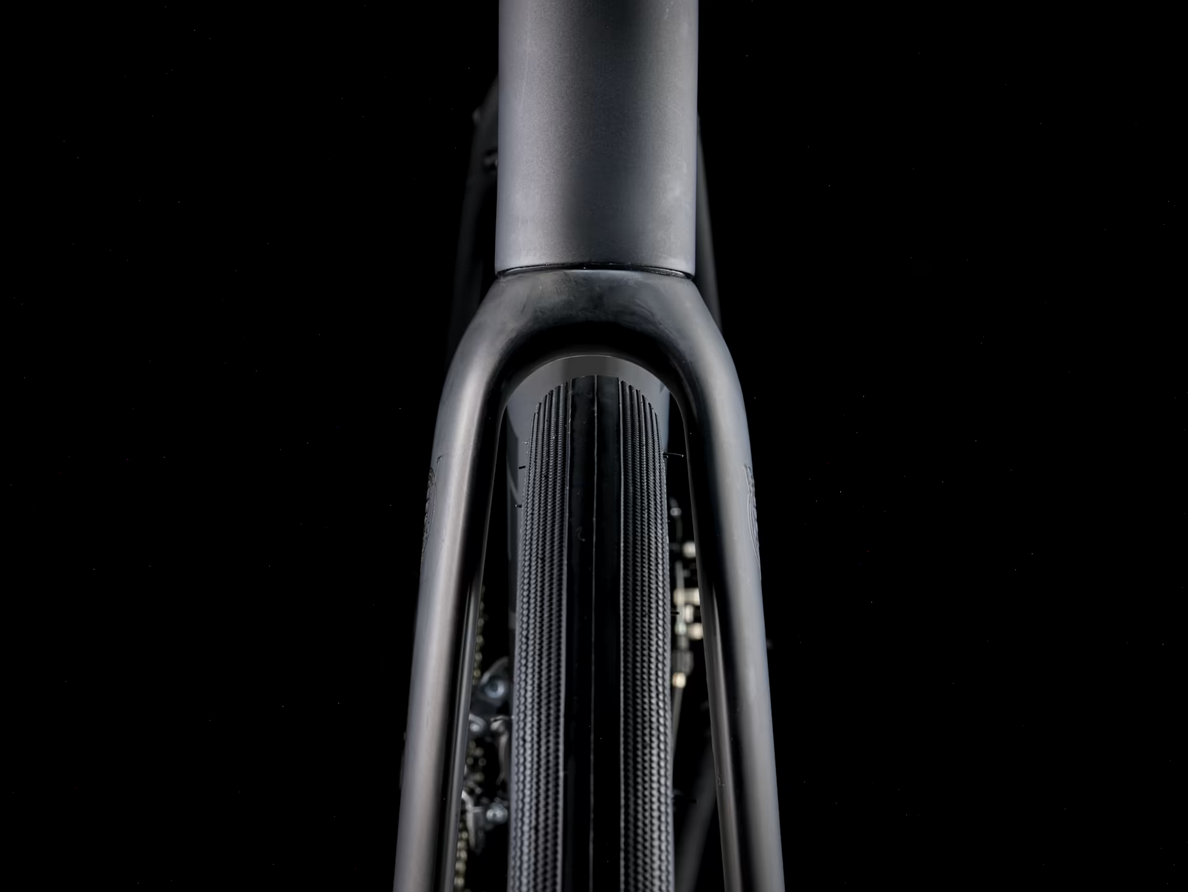

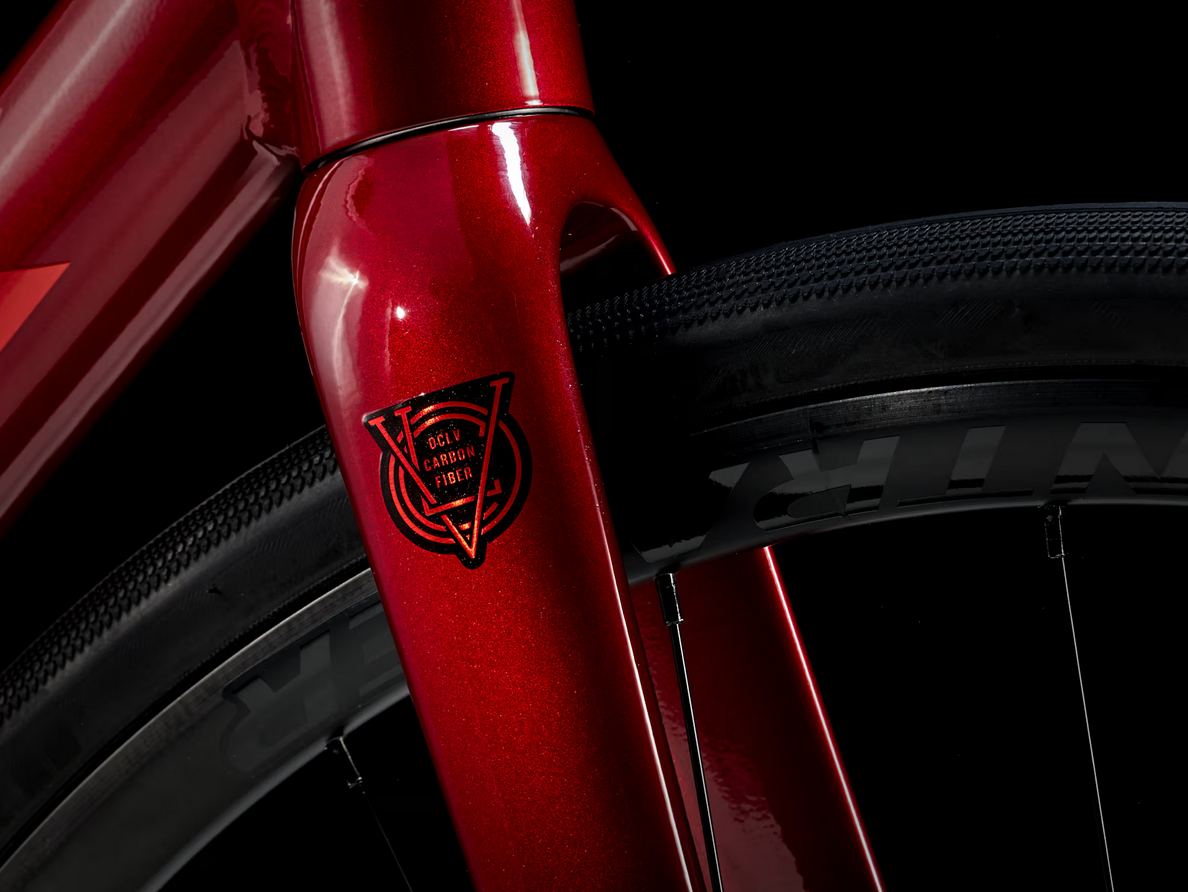

Fork : Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Weight : 56 - 10.55 kg / 23.26 lbs
Weight limit : This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Shifter : Shimano Claris R2000, 8 speed
Front derailleur : Shimano Claris R2000, 31.8 mm clamp
Rear derailleur : Shimano Claris R2000, medium cage, 34T max cog

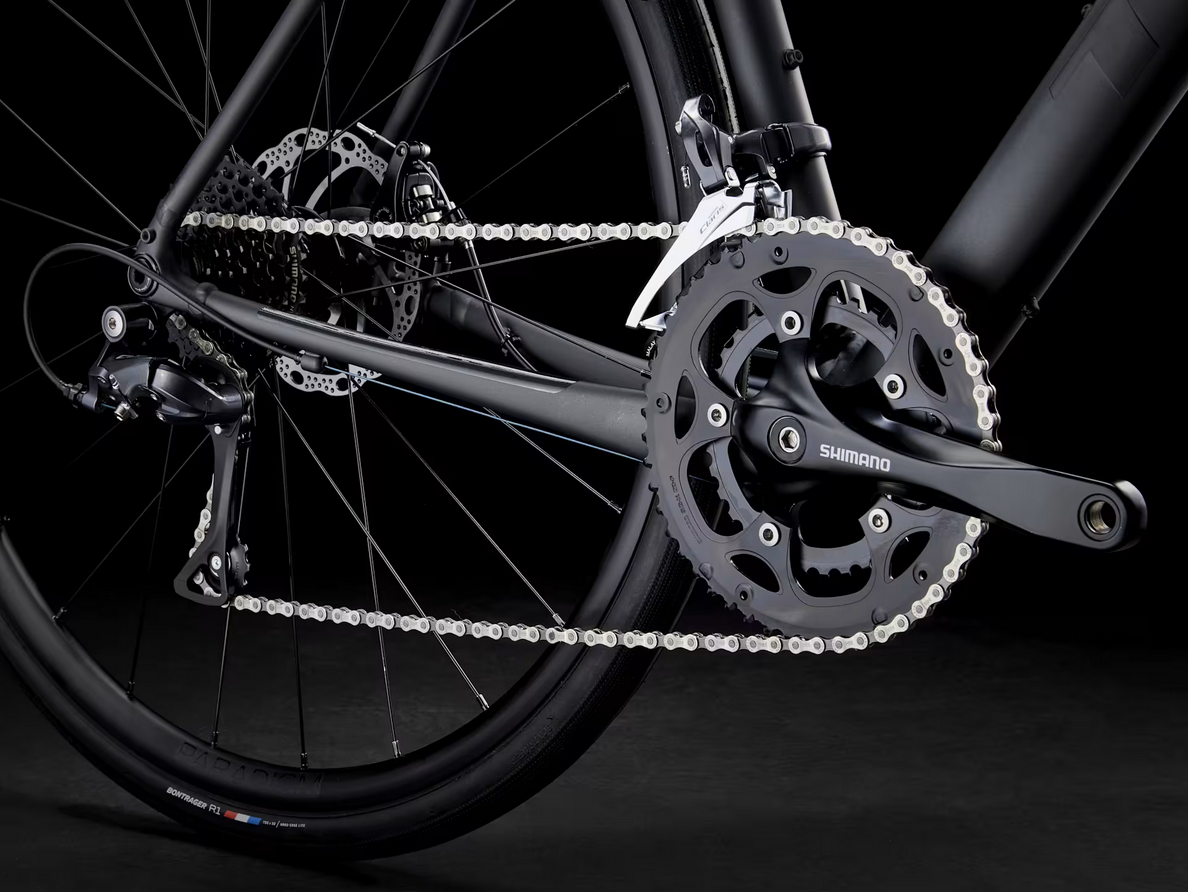

*Crank
Size: 44
Shimano RS200, 50/34 (compact), 165 mm length
Size: 49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm length
Size: 56, 58, 61
Shimano RS200, 50/34 (compact), 175 mm length
Bottom bracket : Shimano UN300, 68mm, threaded cartridge, 110mm spindle
Cassette : Shimano HG31, 11-32, 8 speed
Chain : Shimano Sora HG71, 8 speed
Max chainring size : 1x: 50T, 2x: 50/34
Hub front : Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front : Bontrager Switch chamfered thru axle
Hub rear : Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear : Bontrager Switch chamfered thru axle, removable lever
Rim : Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes : 14g stainless steel, black
Tire : Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Saddle : Verse Short, steel rails, 145mm width
*Seatpost
Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

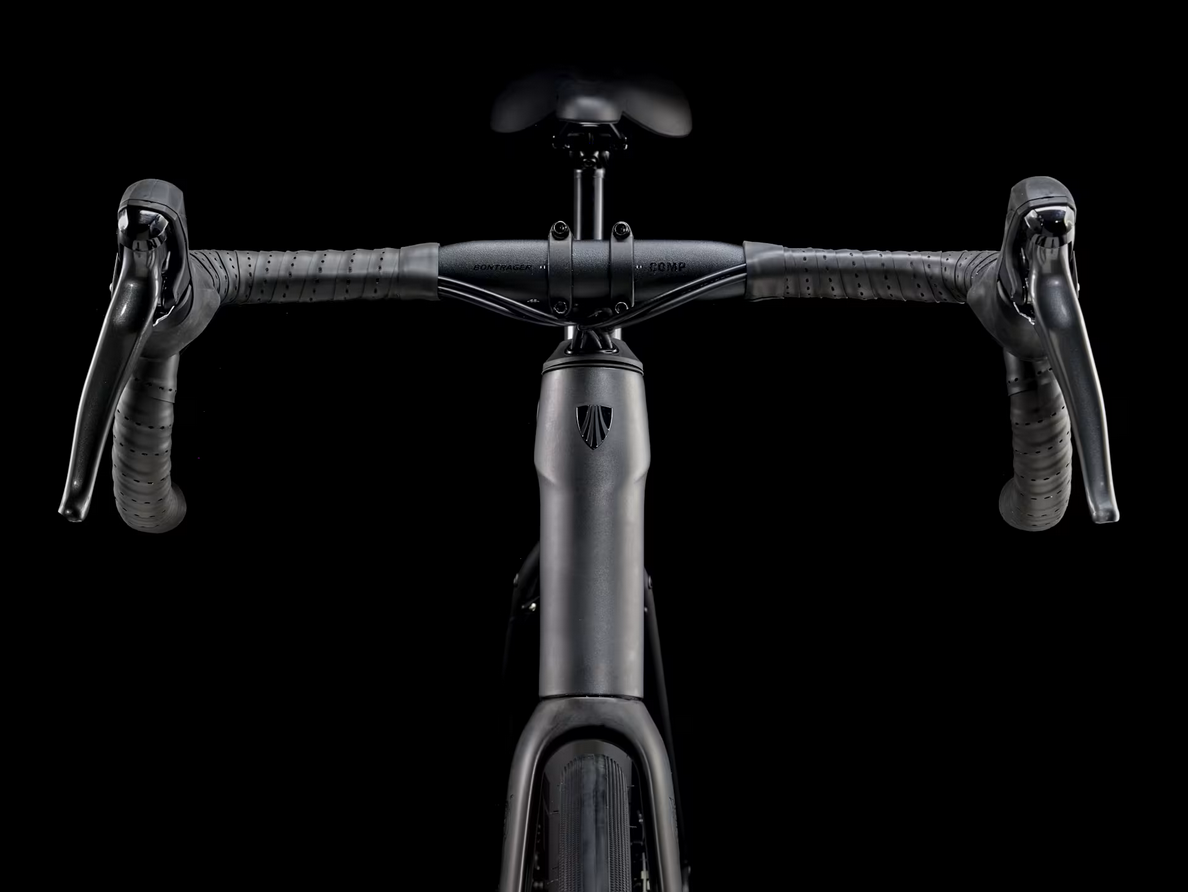

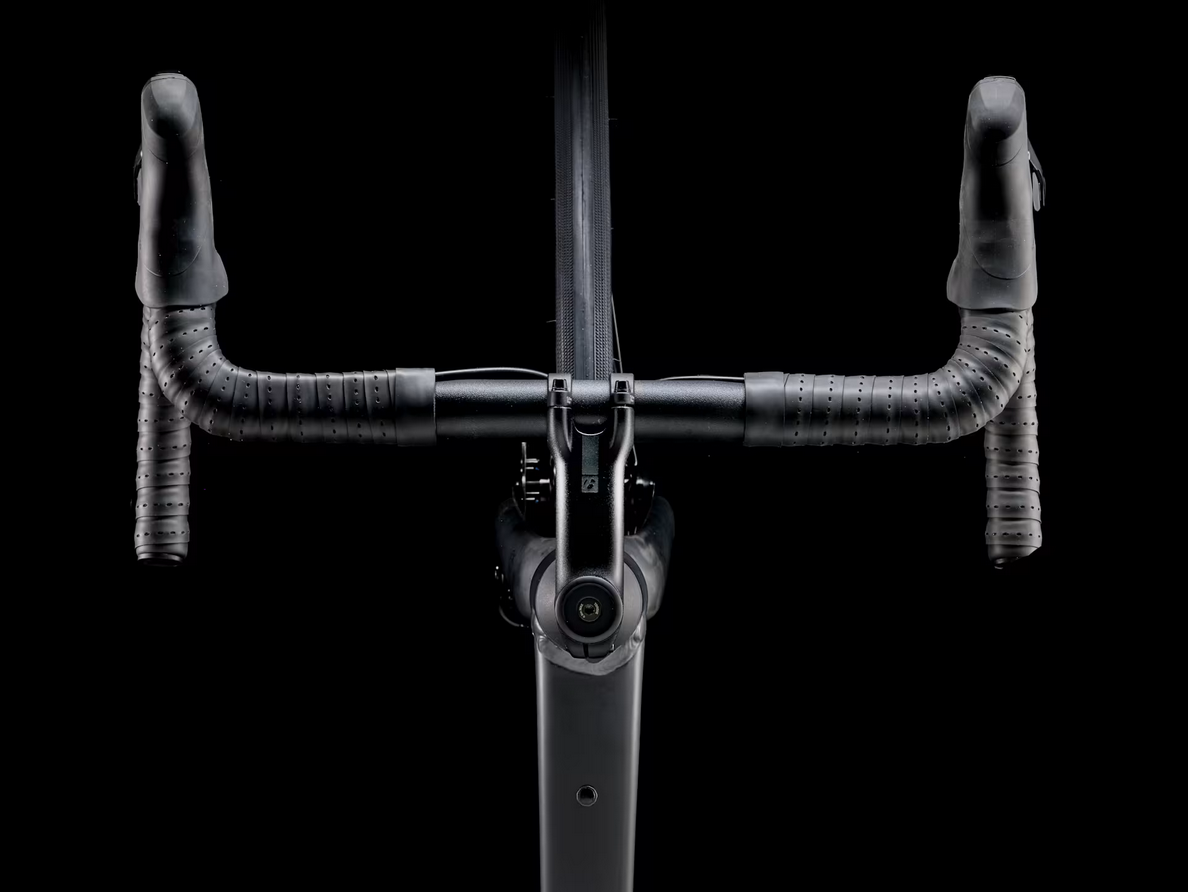

*Handlebar
Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Size: 44
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: 49
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size: 52
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 54, 56
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Size: 58, 61
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
Handlebar tape : Bontrager Supertack Perf tape
*Stem
Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

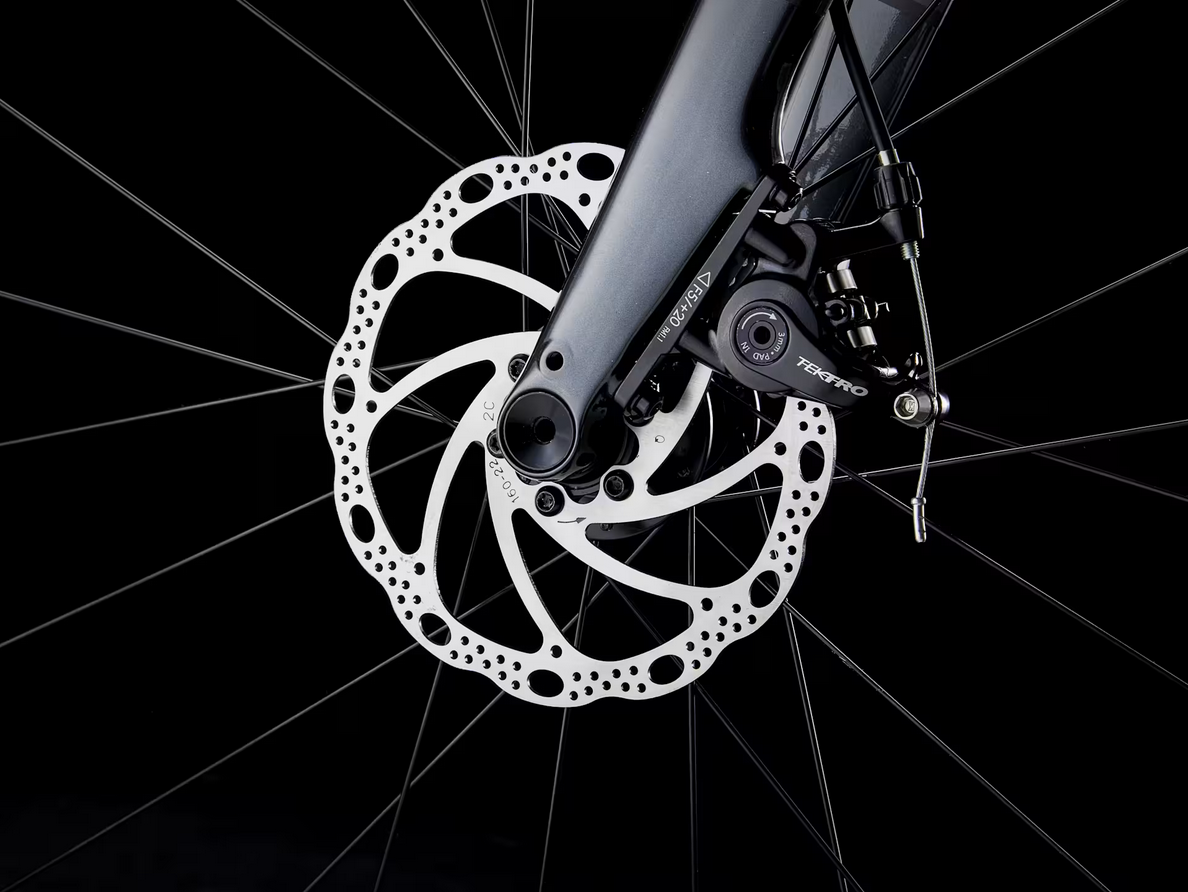

Brake : Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotor : Tektro wave, 6-bolt, 160mm Rotor size
Max brake rotor sizes: 160mm front & rear
TREK se réserve le droit de modifier les spécifications sans préavis. Photos non contractuelles.
