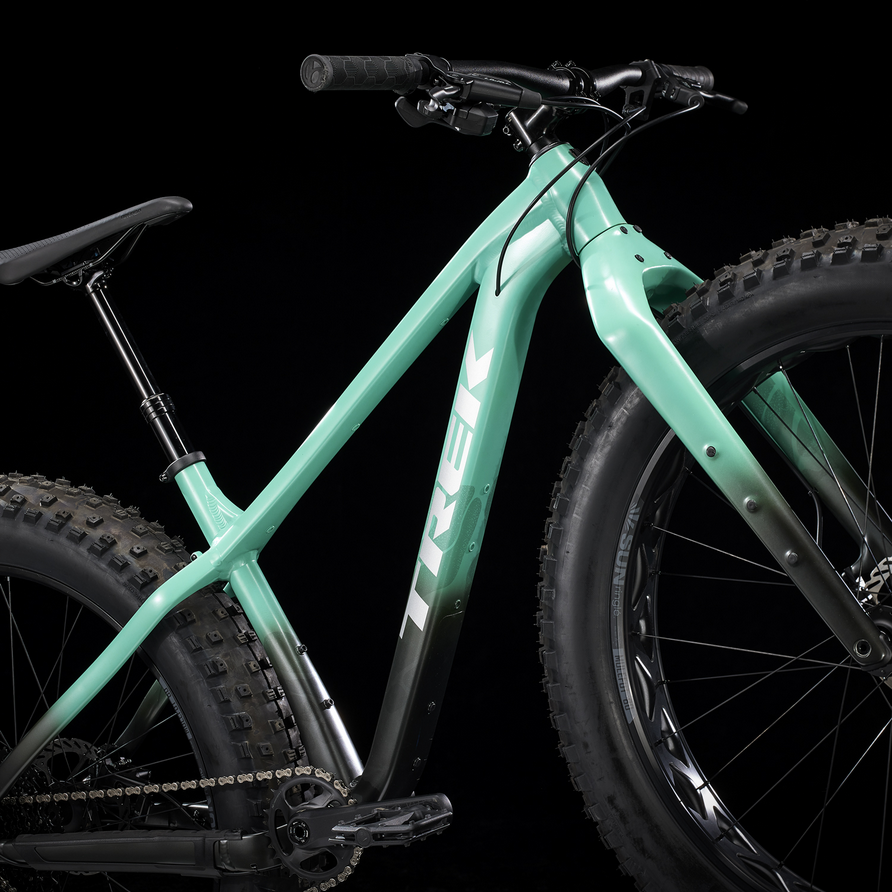

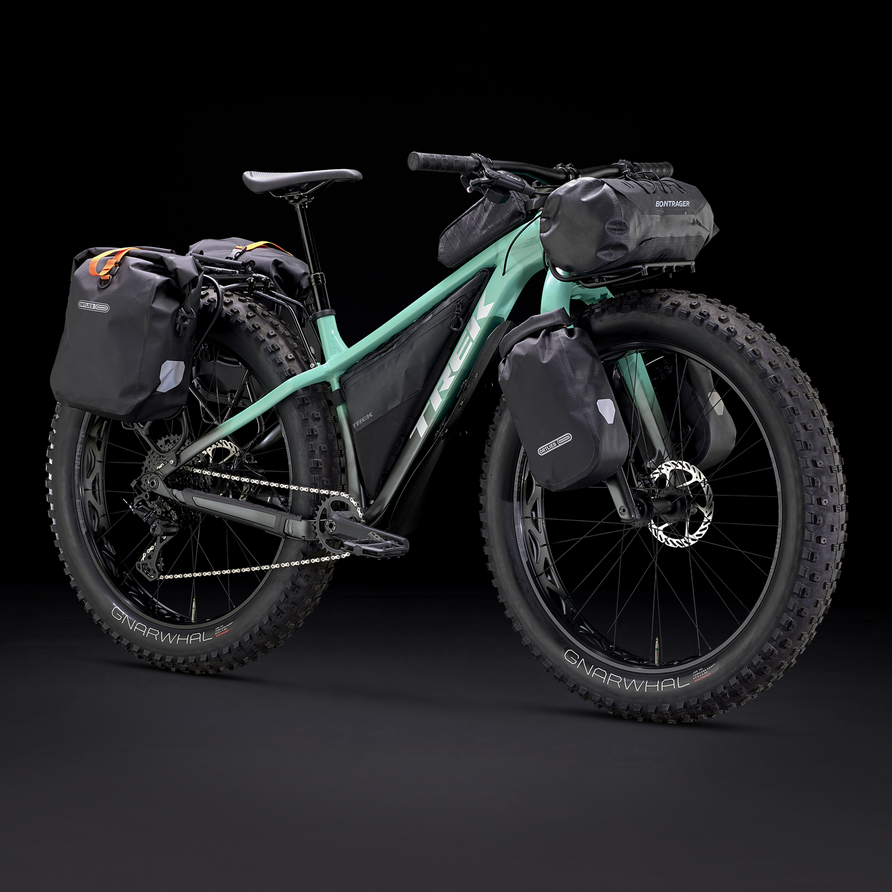

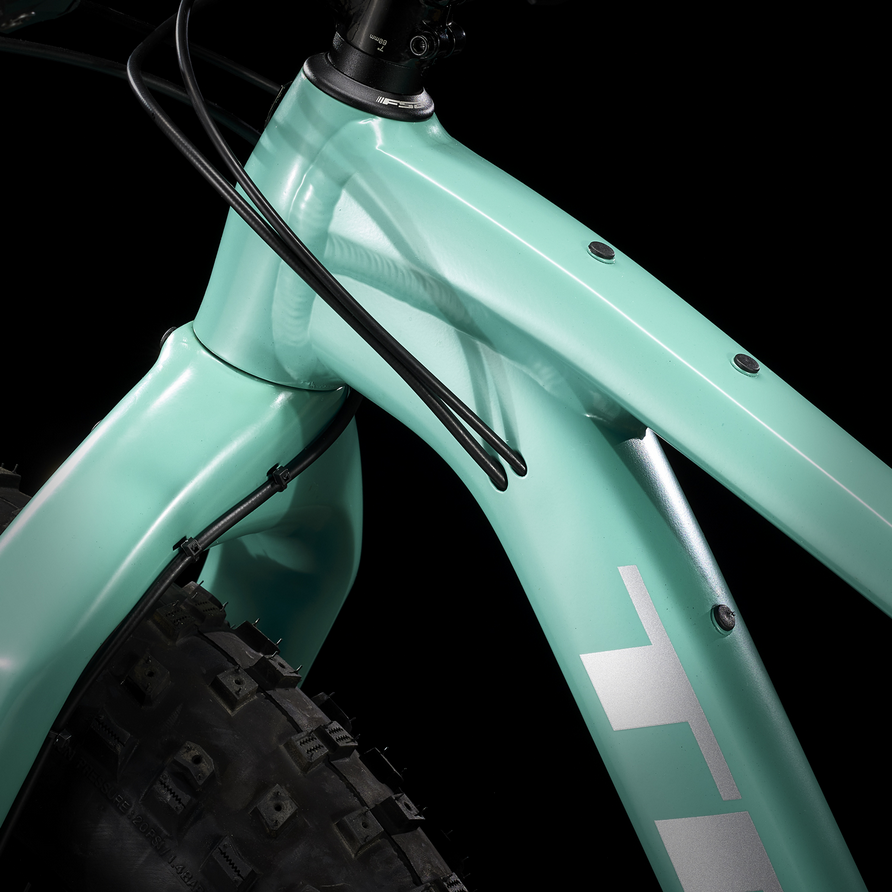

Frame: Alpha Platinum Aluminum, tapered head tube, bag mounts on top tube, frame bag mounts without strap, fender mount on down tube, accessory mount on lower part of down tube, rear rack mounts on seat stay, internal routing of rear derailleur and dropper seatpost cables, threaded bottom bracket, UDH, 197x12 mm.
Fork: Farley carbon, tapered aluminum steerer, fork crown mounts, lower bottle cage mounts, 150x15 mm thru-axle
Front hub: Bontrager alloy, sealed bearing, 6-bolt disc, 150x15 mm thru axle
Front wheel lock: Bontrager Switch thru-axle
Rear hub: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10-speed freehub body, 197 x 12 mm thru axle
Rear wheel lock: Bontrager Switch thru-axle, removable lever
Rim: SUNRingle Mulefut 80 SL, 32-hole cut

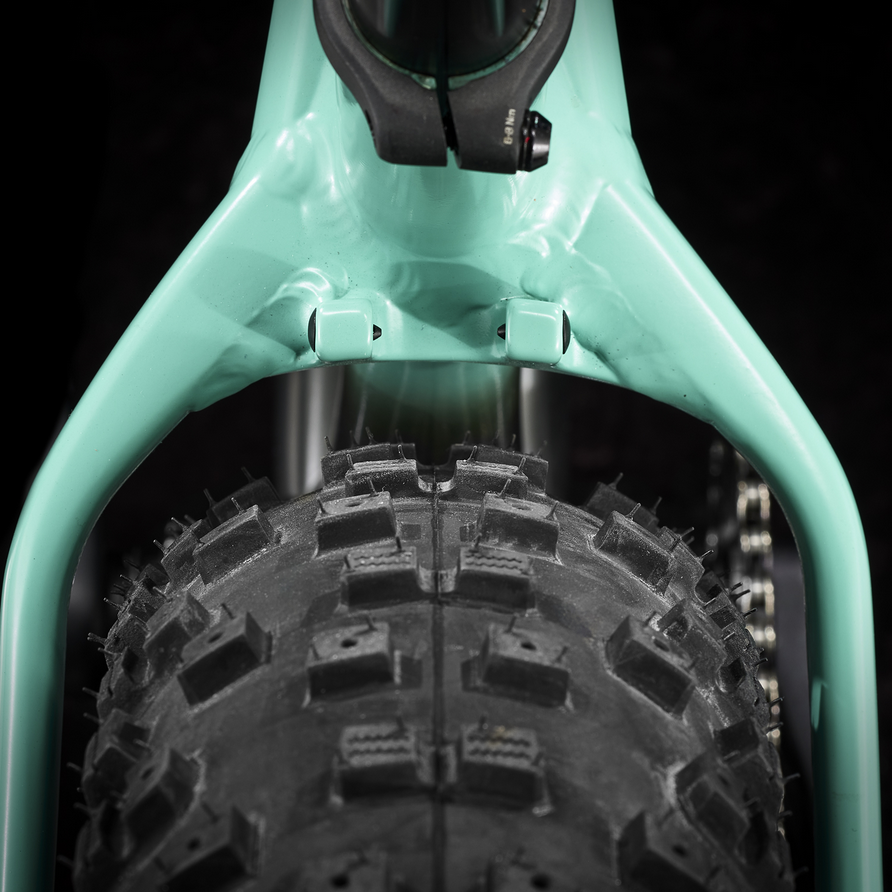

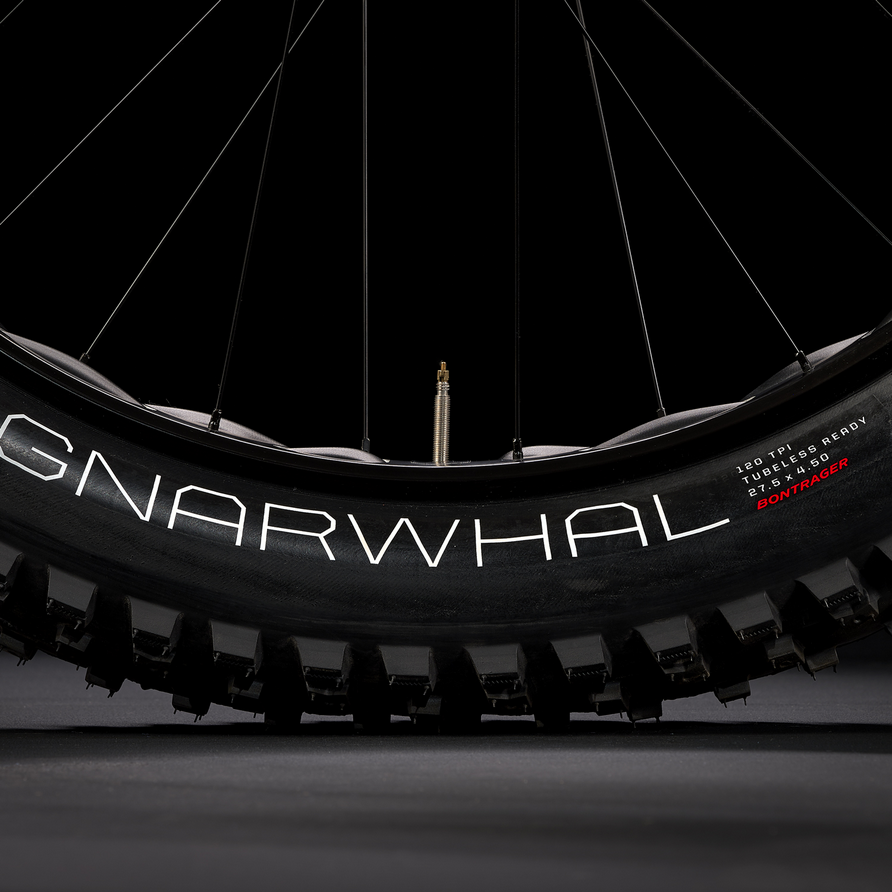

Tire: Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, can have knobs, aramid bead, 120 tpi, 27.5x4.50 inches
Gear shift lever: microSHIFT Advent X SL-M9605, 10 speeds

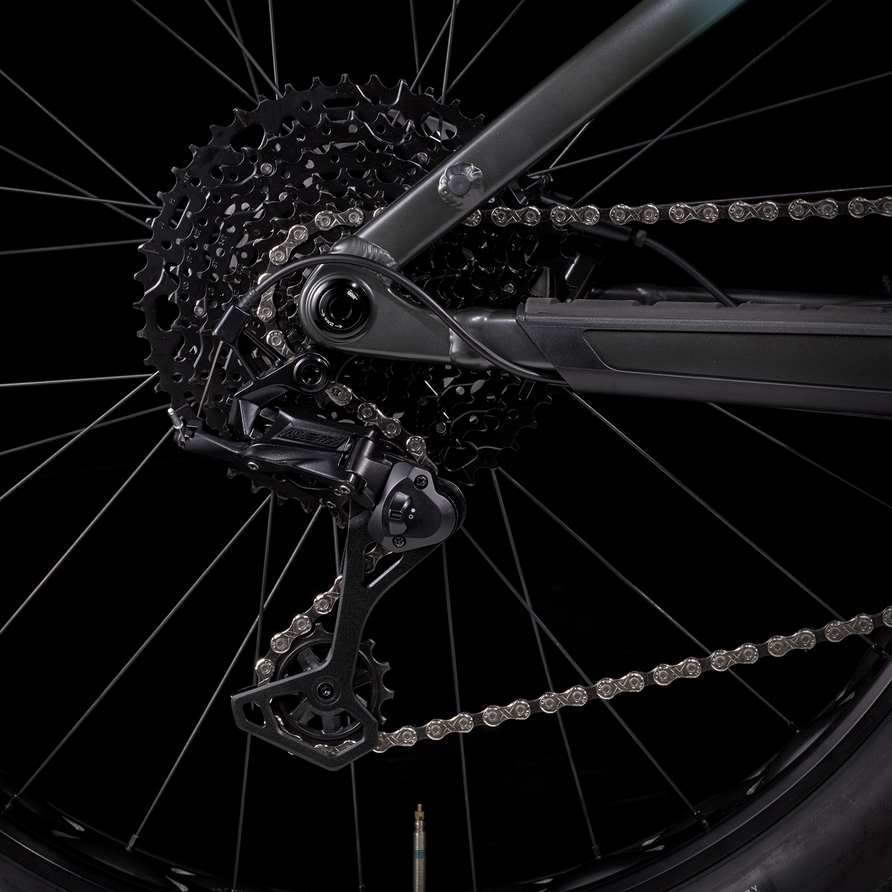

Rear derailleur: microSHIFT Advent X RD-M6205AM, 48T max sprocket

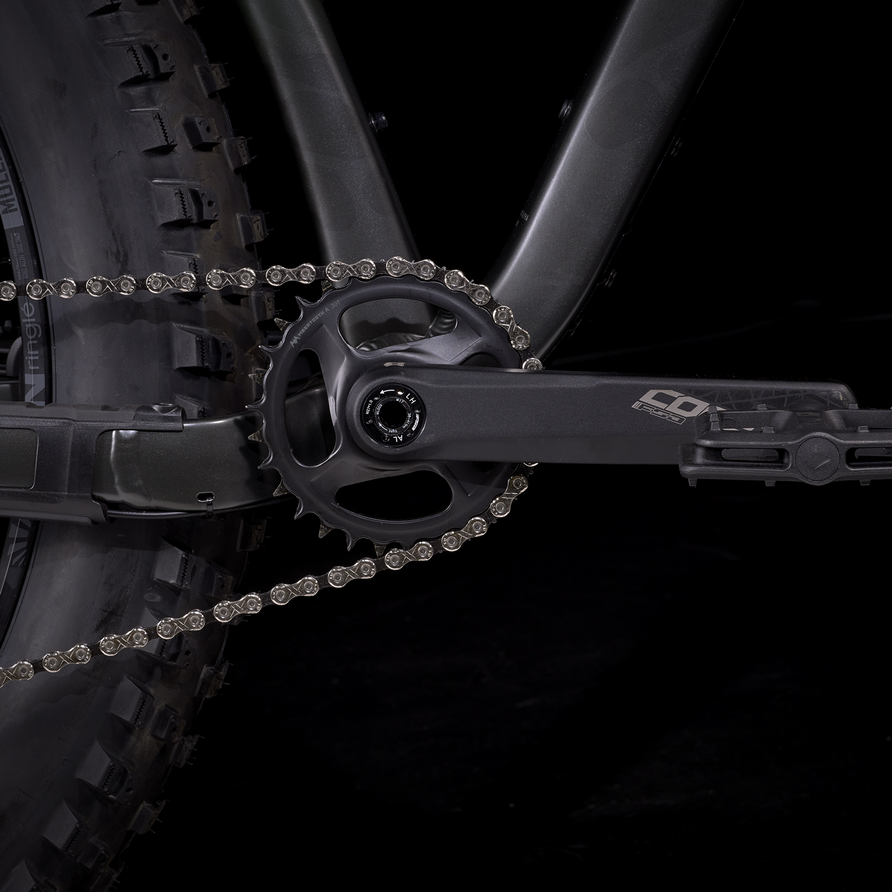

Crankset:
Size: S, M, L
FSA Comet, 30 teeth, 170 mm length
Size: XL
FSA Comet, 30 teeth, 175 mm length
Bottom bracket: FSA BB-7100, 100 mm, BSA threaded
Cassette: microSHIFT Advent X, 11-48, 10 speed
Chain: KMC X10, 10 speeds
Pedal: VP-536, platform, nylon
Saddle: Bontrager Verse P3, steel rails
Seat post
Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm diameter, 361 mm length
Size: M
TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm diameter, 425 mm length
Size: L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm diameter, 470 mm length

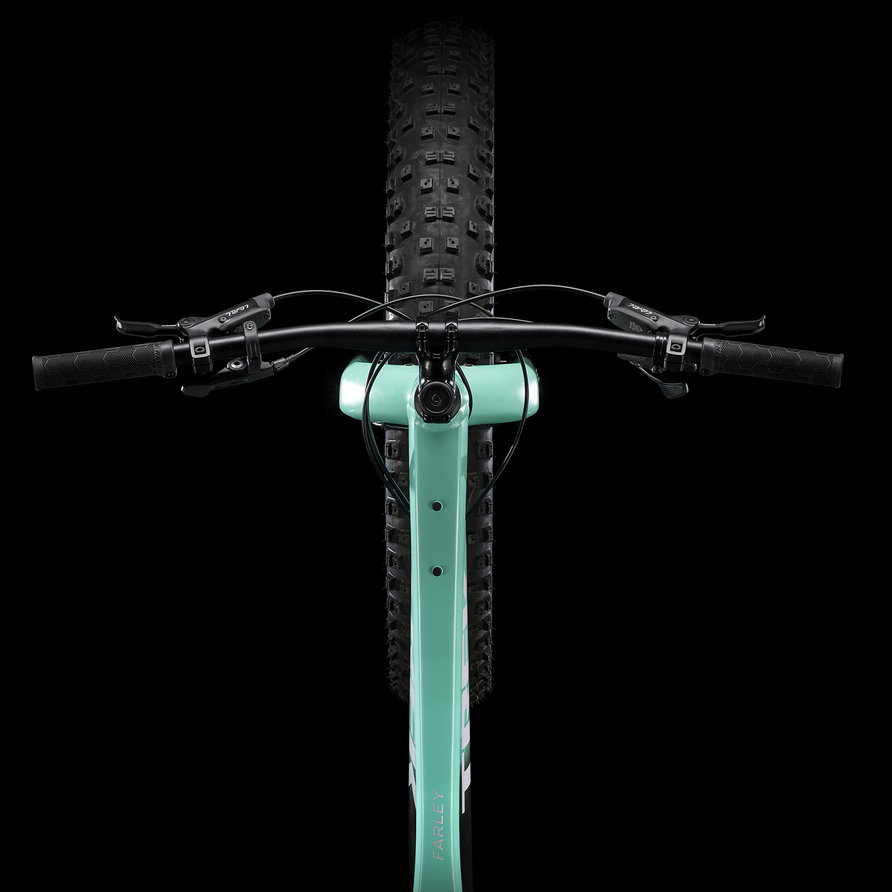

Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Gallows:
Size: S
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 50 mm length
Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 60 mm length
Size: L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 70 mm length
Headset: FSA IS-2, 1.125 inches at the top, 1.5 inches at the bottom
Brakes: SRAM Level hydraulic disc

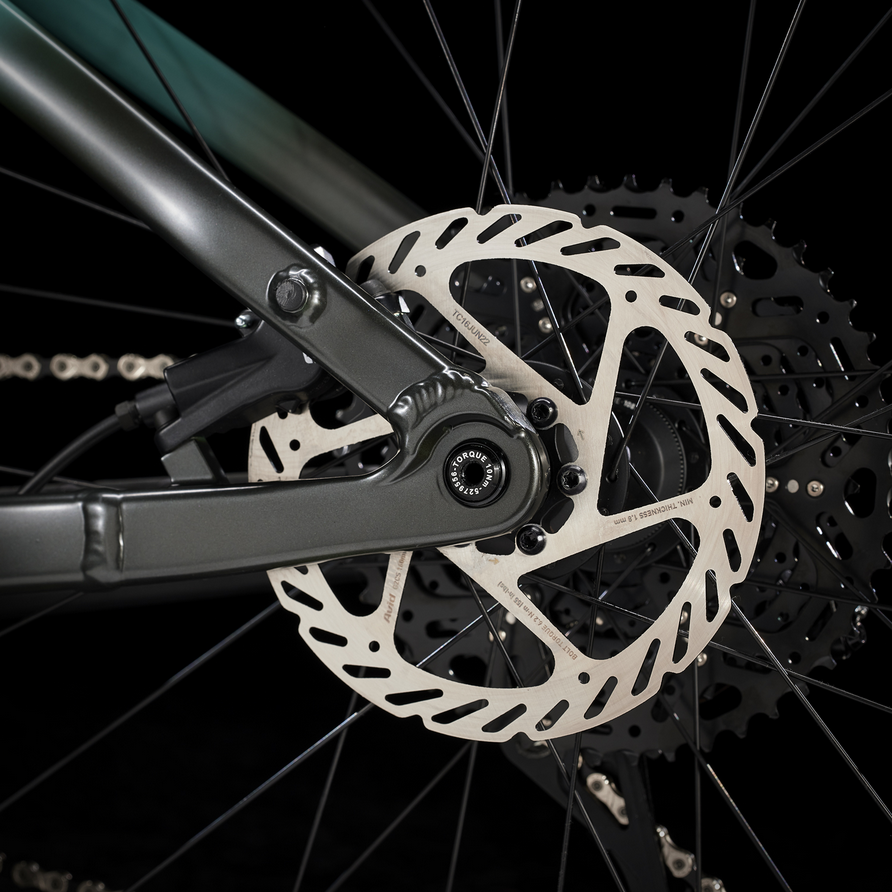

Brake disc: Avid G2 Cleansweep, 6-bolt, 160 mm
Brakes: SRAM Level hydraulic disc
