Frame : Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork
Size: XS

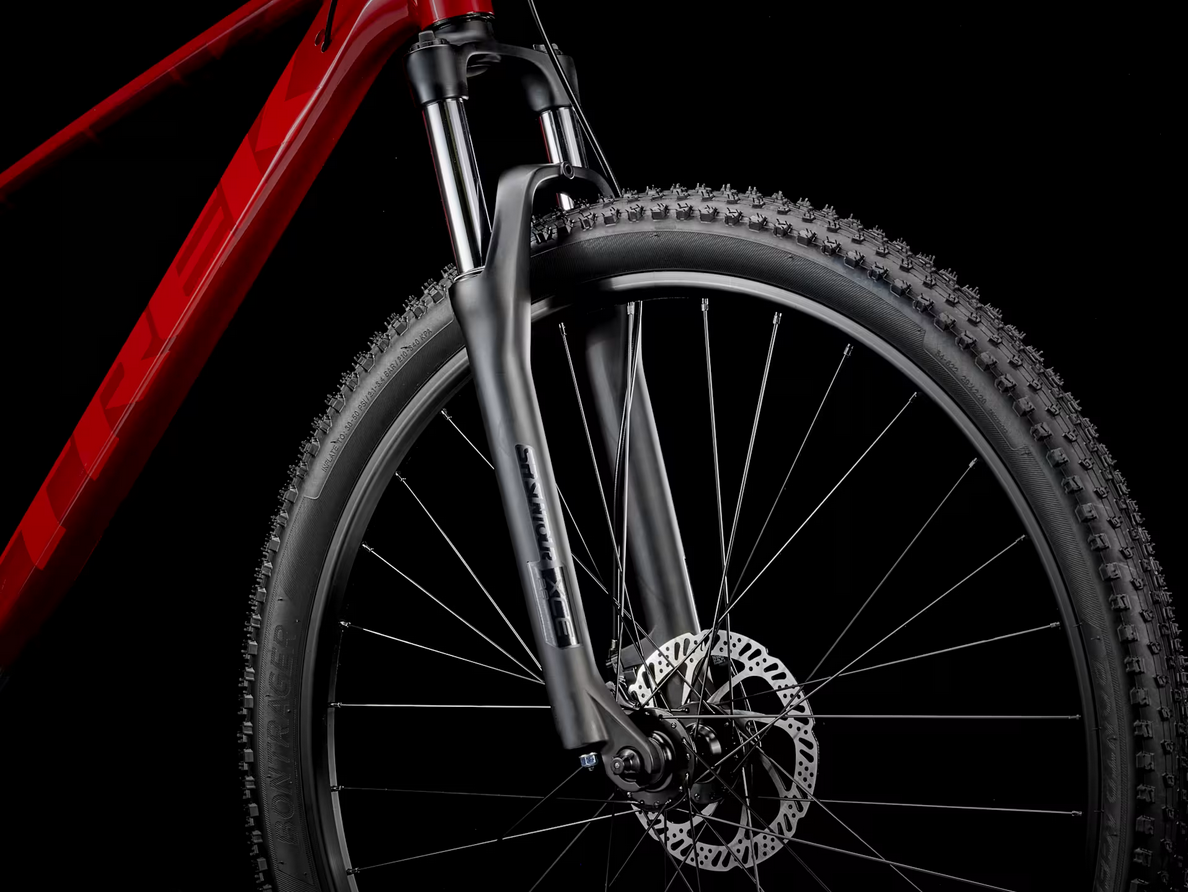

SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Hub front : Formula DC-20, alloy, 6-bolt, 100x5mm
Hub rear : Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm
Skewer rear : 152x5mm QR
Rim : Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes : 14g stainless steel, black
*Tire
Size: XS , S

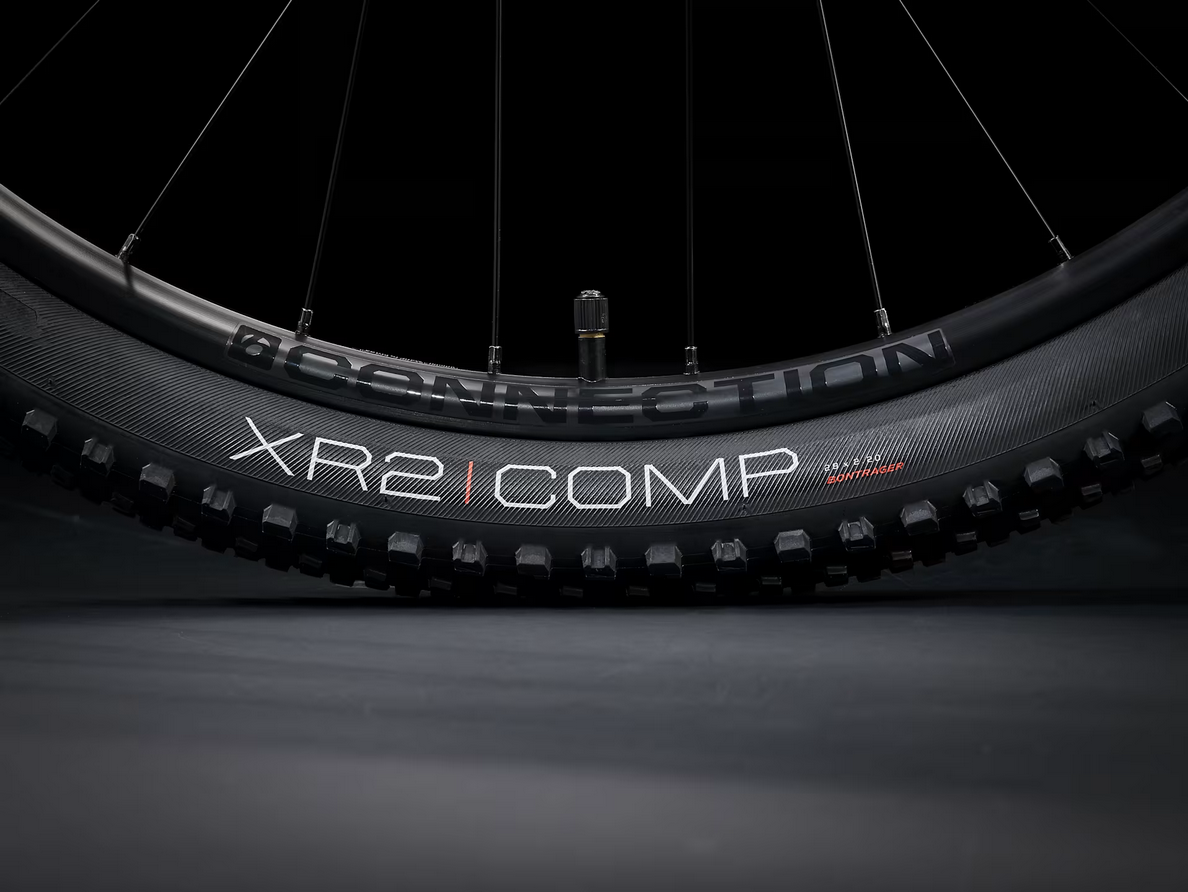

Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: M , ML , L , XL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Max tire size : Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer
*Shifter
Size: XS , S , M , ML , L , XL
Shimano Altus EF500, 7 speed
Size: XS , S , M , ML , L , XL
Shimano EF500, 2 speed
Front derailleur : Shimano Altus M315, 34.9mm clamp, top swing, dual pull

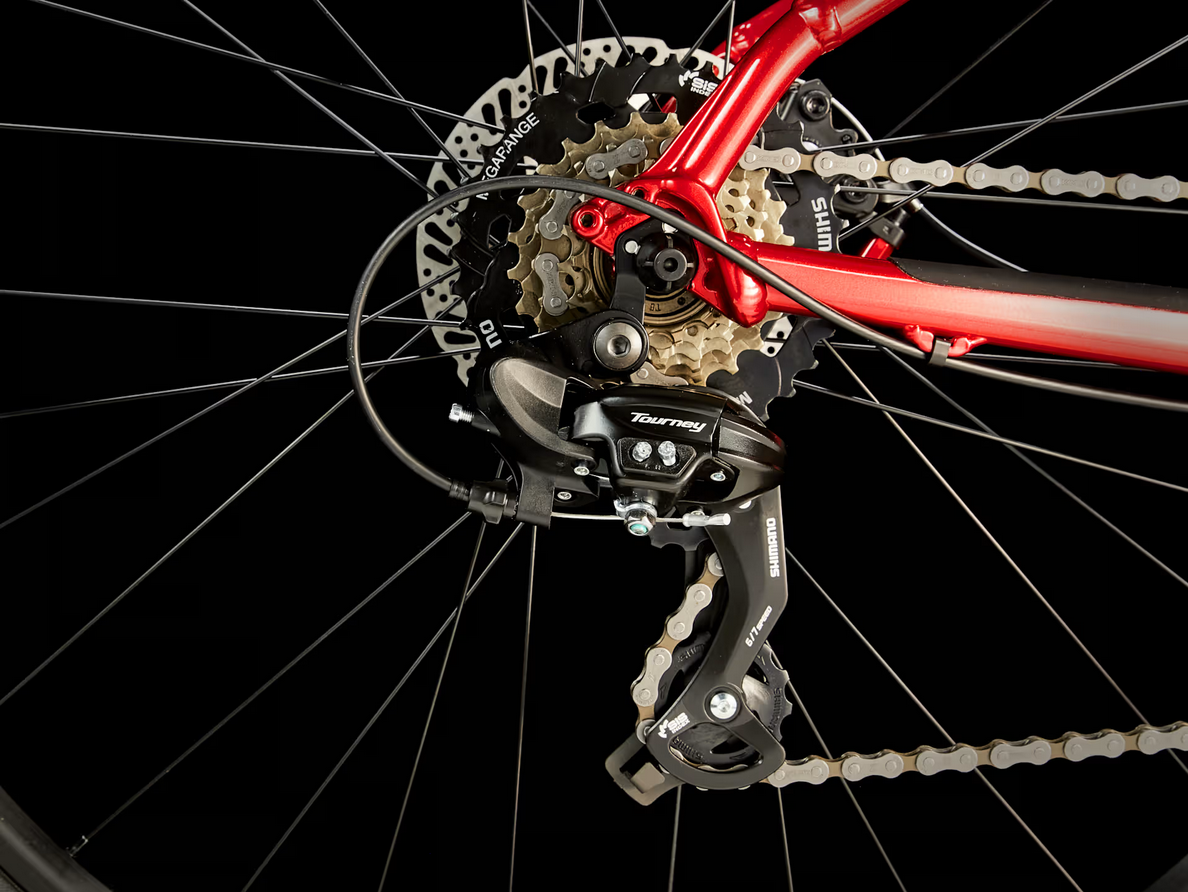

Rear derailleur : Shimano Tourney TY300
*Crank
Size: XS , S , M
ProWheel TM-CY10, 36/22, 170mm length
Size: ML , L , XL
ProWheel TM-CY10, 36/22, 175mm length
Bottom bracket : VP BC73, 73mm, threaded cartridge
Cassette : Shimano TZ500, 14-34, 7 speed
Chain : KMC Z7, 7 speed
Pedal : VP-536 nylon platform
Max chainring size : 1x: See FAQ, 2x: 36T, 3x: 42T
Saddle : Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XS , S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: M
Bontrager alloy, 31.6mm, 12mm offset, 360mm length
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar
Size: XS , S
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips : Bontrager XR Endurance Comp, lock-on
*Stem
Size: XS , S
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
Headset : Semi-integrated, 1-1/8"
*Brake
Size: XS , S , M , ML , L , XL
Tektro MD-M280 mechanical disc, 160mm rotor
Size: XS , S , M , ML , L , XL
Tektro MD-M281 mechanical disc
Size: XS , S , M , ML , L , XL
Tektro MD-M280 mechanical disc
*Brake rotor
Size: XS , S , M , ML
Tektro, 6-bolt, 160mm
Size: XS , S , M , ML , L , XL
Tektro wave, 6-bolt, 160mm
Rotor size : Max brake rotor sizes - Frame: 180mm, min 160mm, Fork: see fork manufacturer
Weight : M - 14.60 kg / 32.19 lbs
TREK se réserve le droit de modifier les spécificités techniques listées, sans préavis
