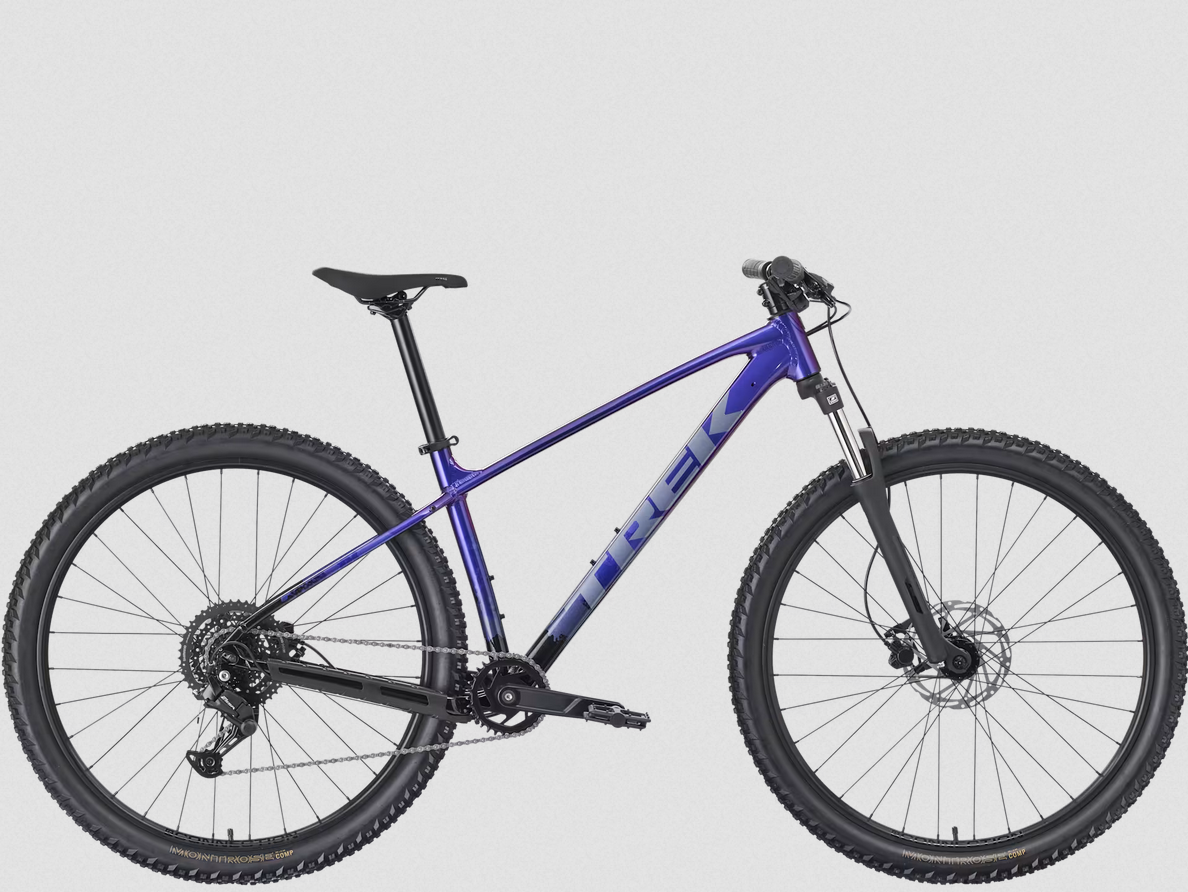

*Frame
Size: XXS , XS

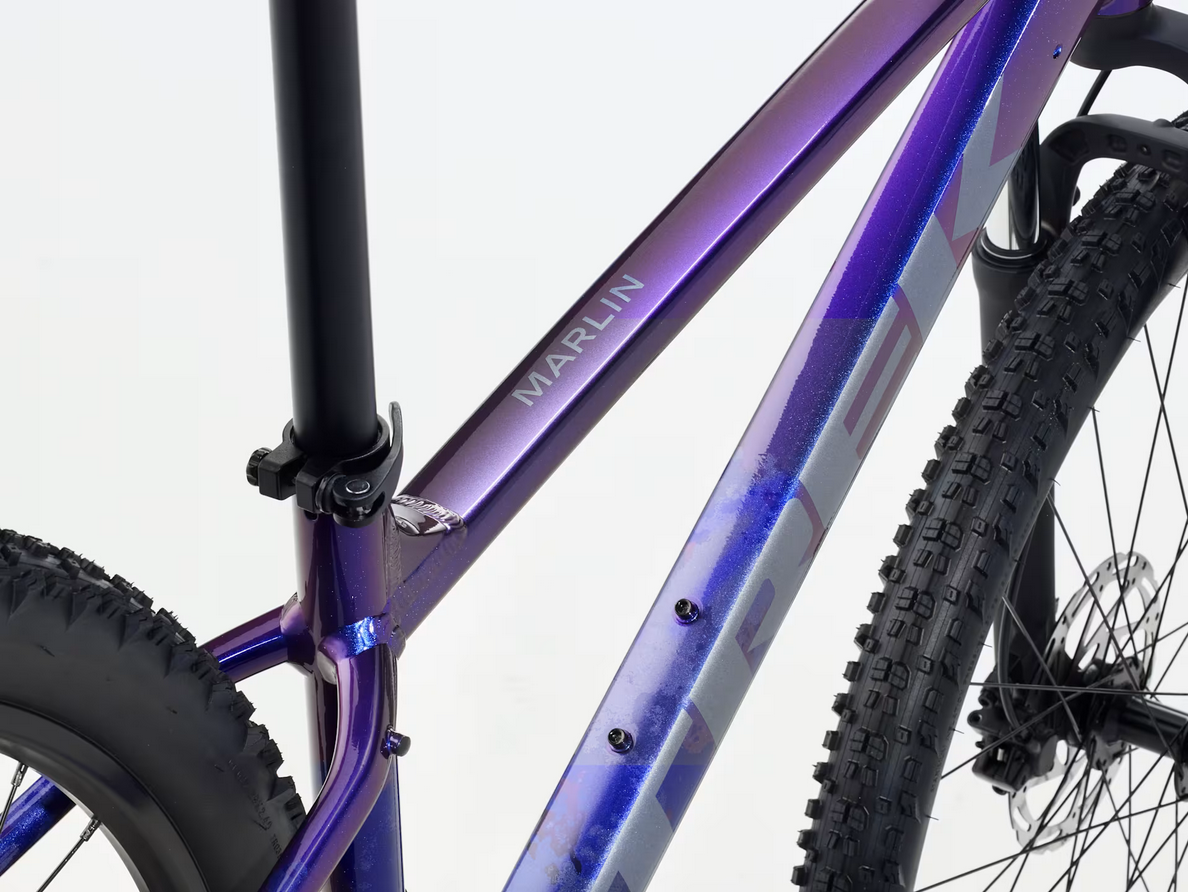

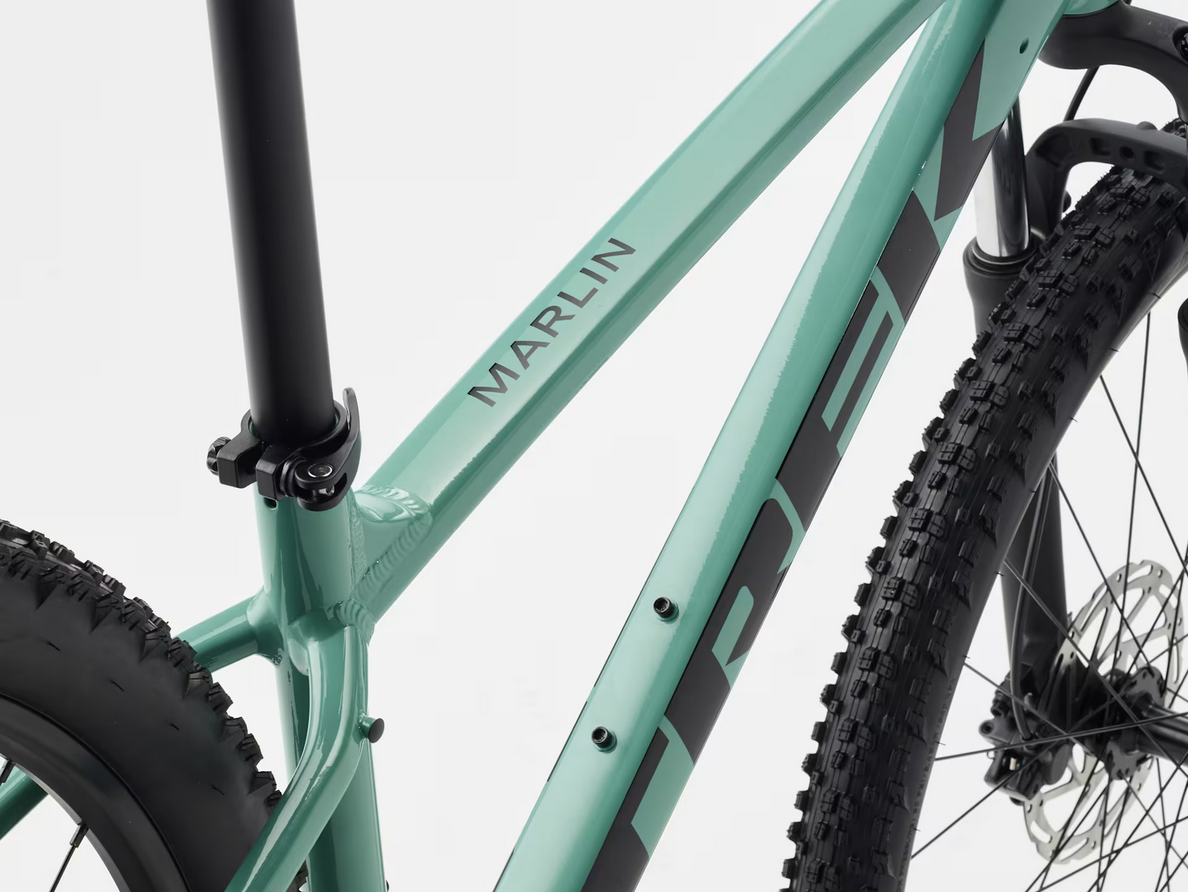

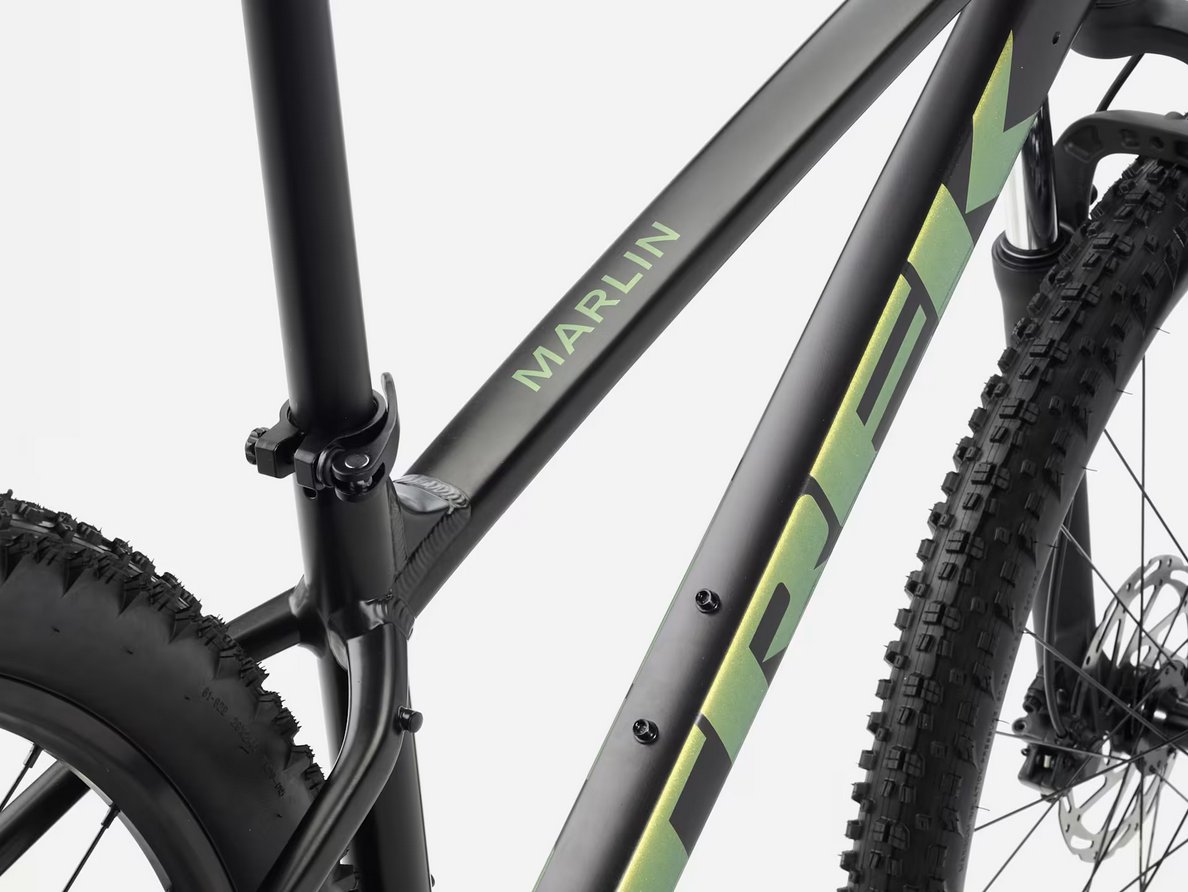

Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork
Size: XXS
SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR, 100mm travel
Size: XS
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Hub front : Formula DC-20, alloy, 6-bolt, 100x5mm
Hub rear : Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear : 173x5mm QR
Rim : Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
*Tire
Size: XXS
Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''
Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
Size: M , ML , L , XL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
Shifter : Shimano M315, 8 speed

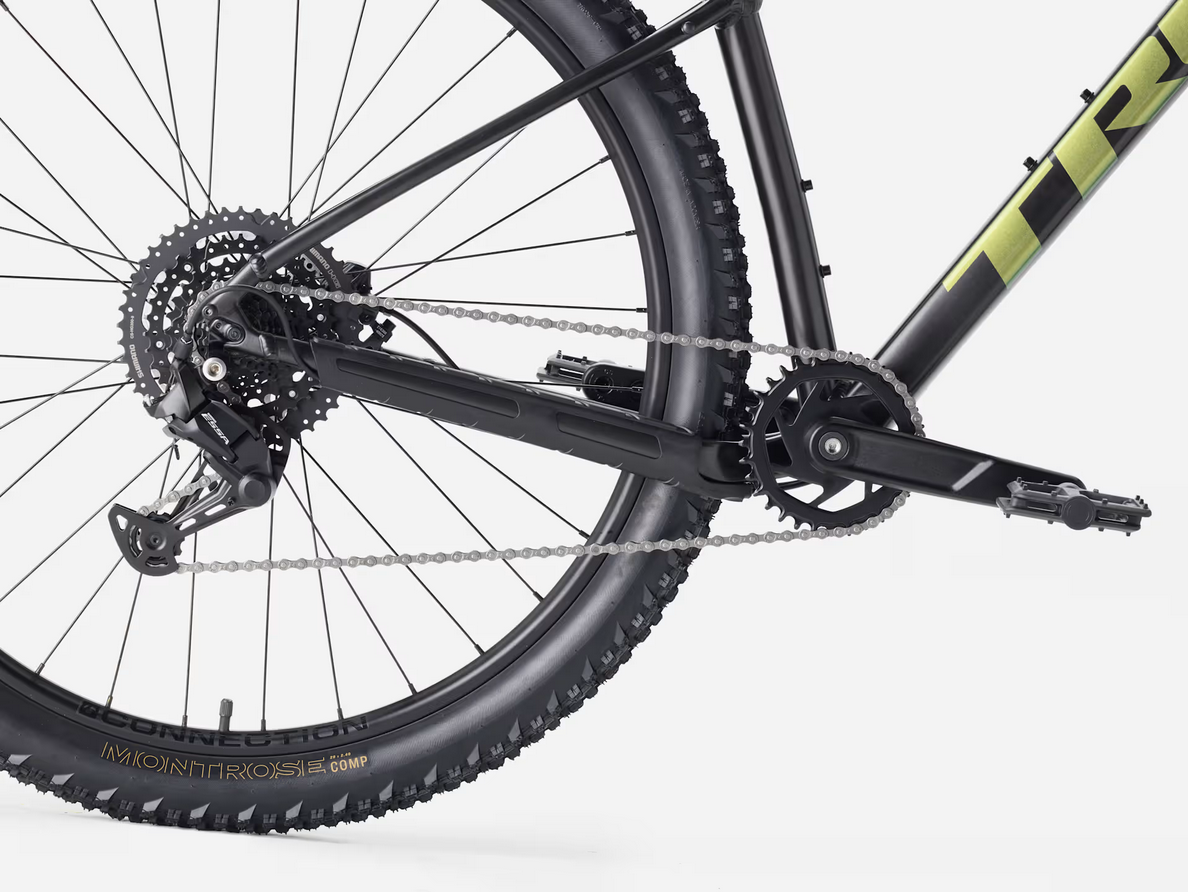

Rear derailleur : Shimano ESSA U2000
*Crank
Size: XXS , XS
ProWheel alloy, 30T narrow-wide steel ring, 160mm length
Size: S , M , ML
ProWheel alloy, 30T narrow-wide steel ring, 170mm length
Size: L , XL
ProWheel alloy, 30T narrow-wide steel ring, 175mm length
Cassette : Shimano HG300, 11-45, 8 speed
Chain : KMC Z8.3, 8 speed
Pedal : Nylon platform
Saddle : Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XXS
Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length

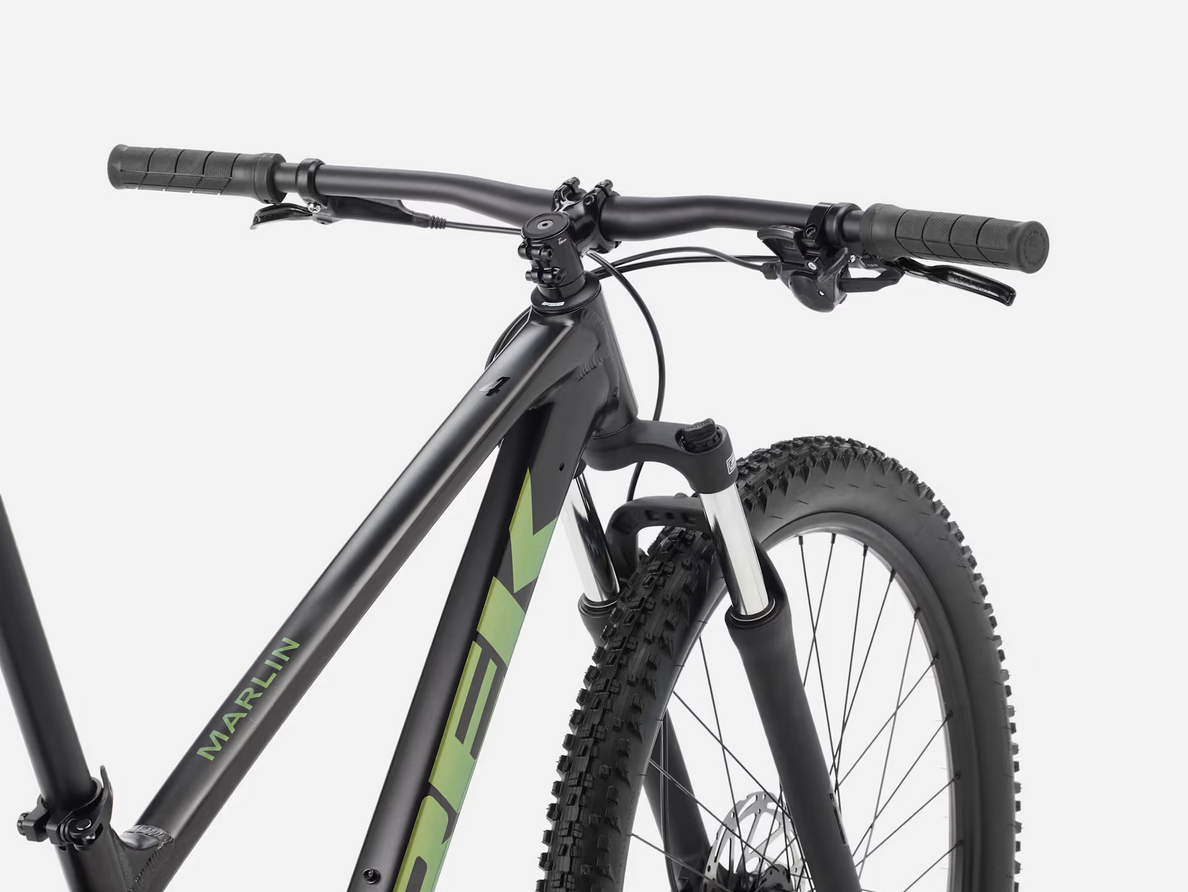

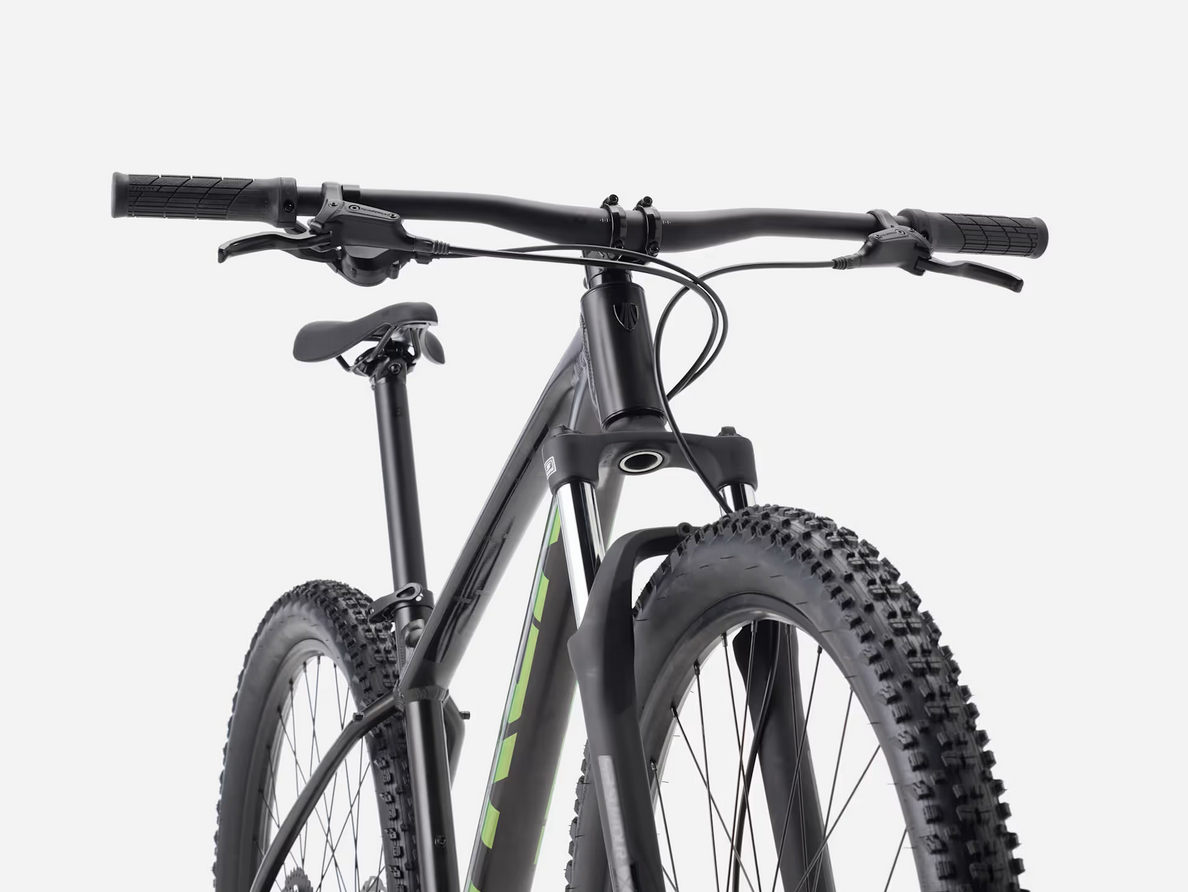

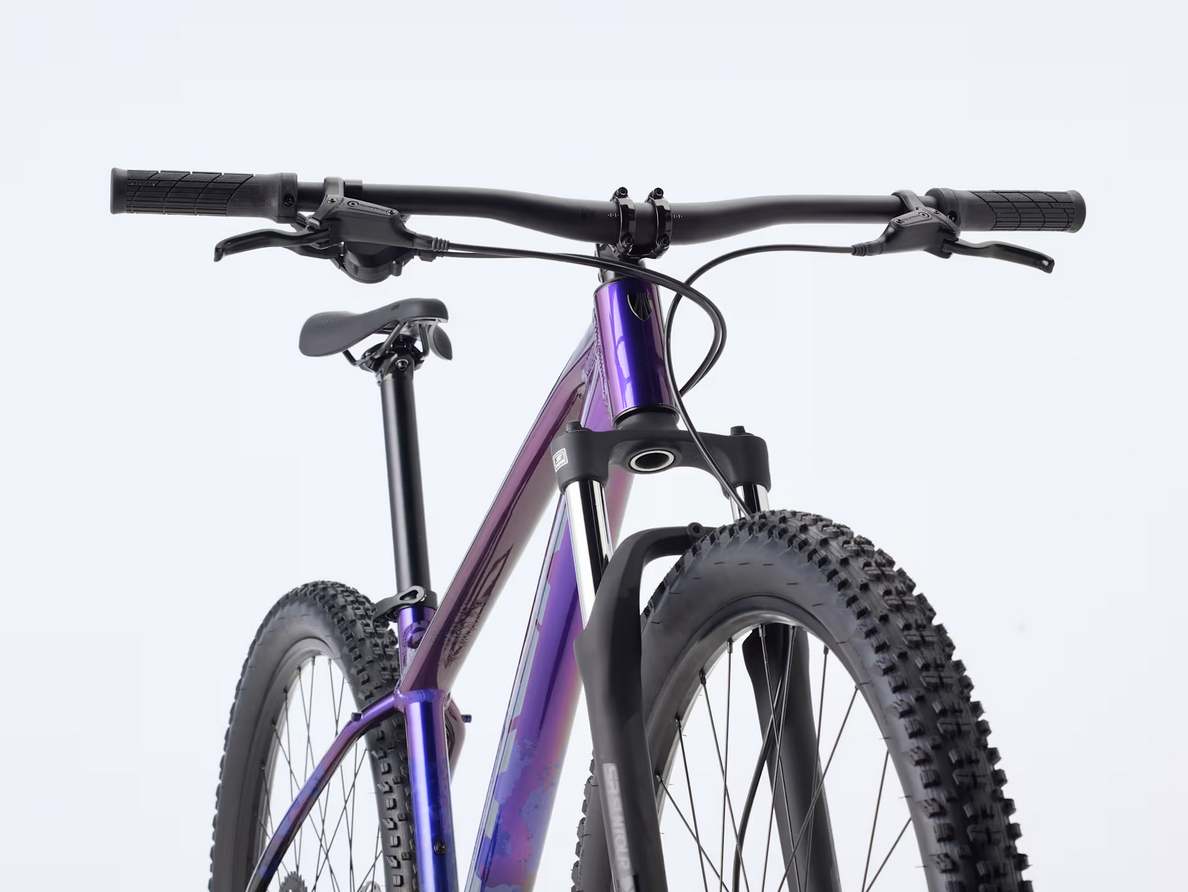

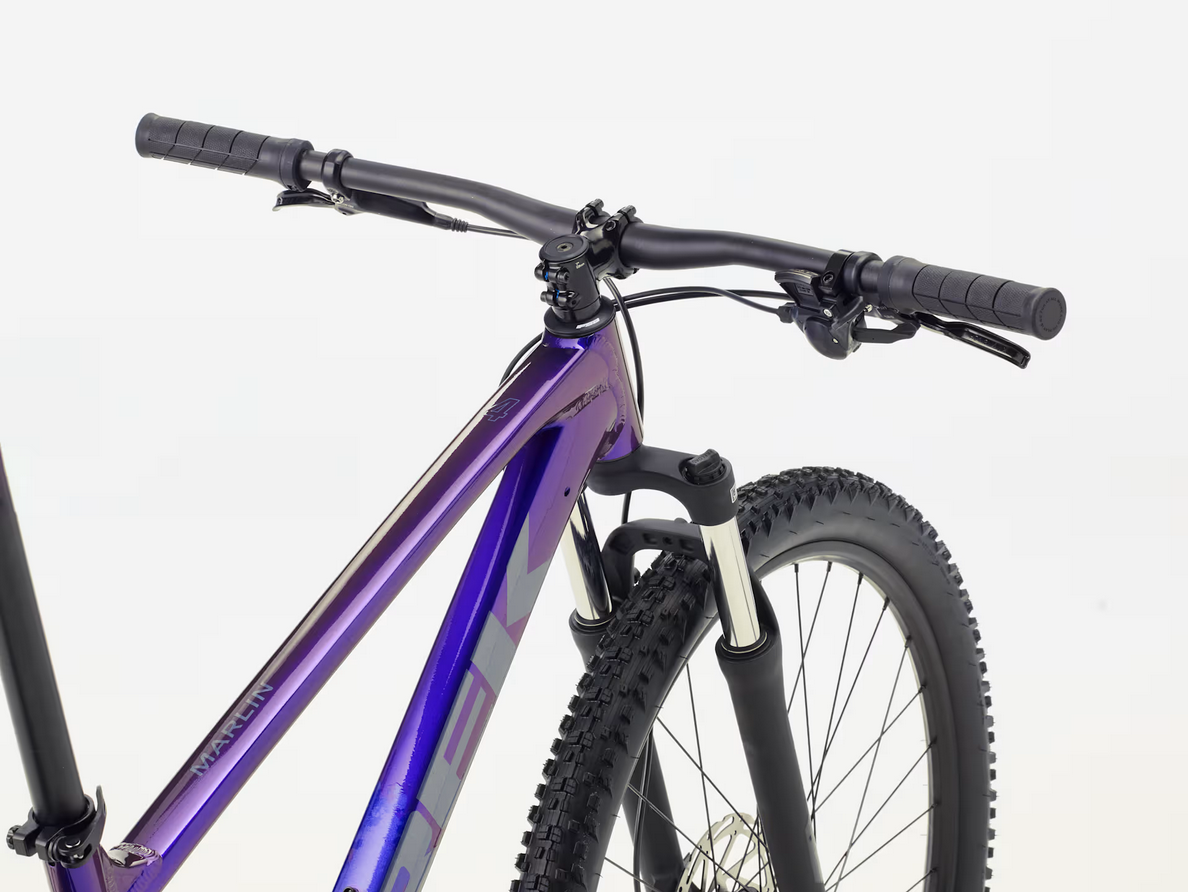

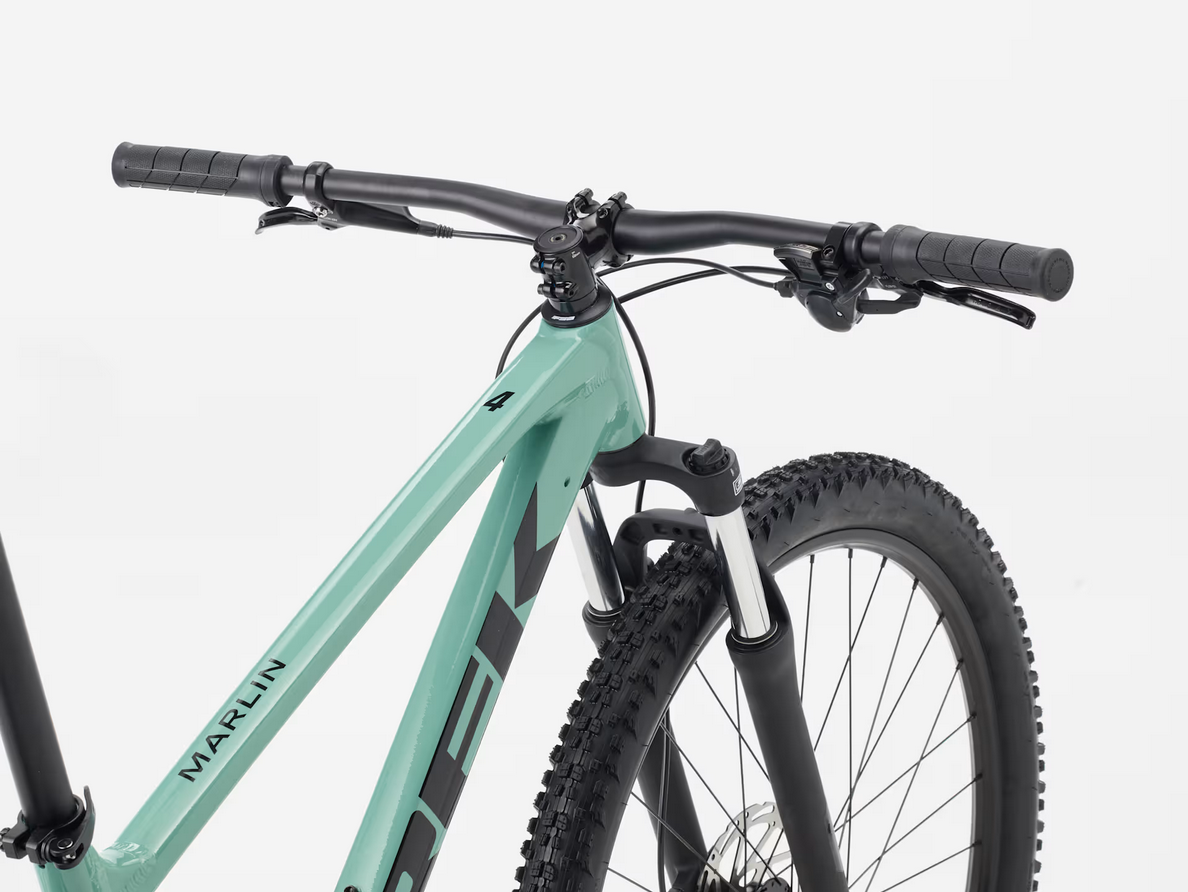

*Handlebar
Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips : Trek Line Comp, nylon lock-on
*Stem
Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset : Semi-integrated, 1-1/8''
*Brake
Size: XXS , XS , S
Tektro HD-M276 hydraulic disc
Size: XXS , XS , S , M , ML , L , XL
Power BH-M286TF hydraulic disc, 160mm rotor
Size: M , ML , L , XL
Tektro HD-M275 hydraulic disc
Size: M , ML , L , XL
Power BH-M286TF hydraulic disc, 180mm rotor
*Brake rotor
Size: XXS , XS , S , M , ML , L , XL
Tektro, 6-bolt, 160mm
Size: M , ML , L , XL
Tektro, 6-bolt, 180mm
Weight : M - 14.90 kg / 32.85 lbs
TREK se réserve le droit de modifier les spécificités techniques listées, sans préavis
