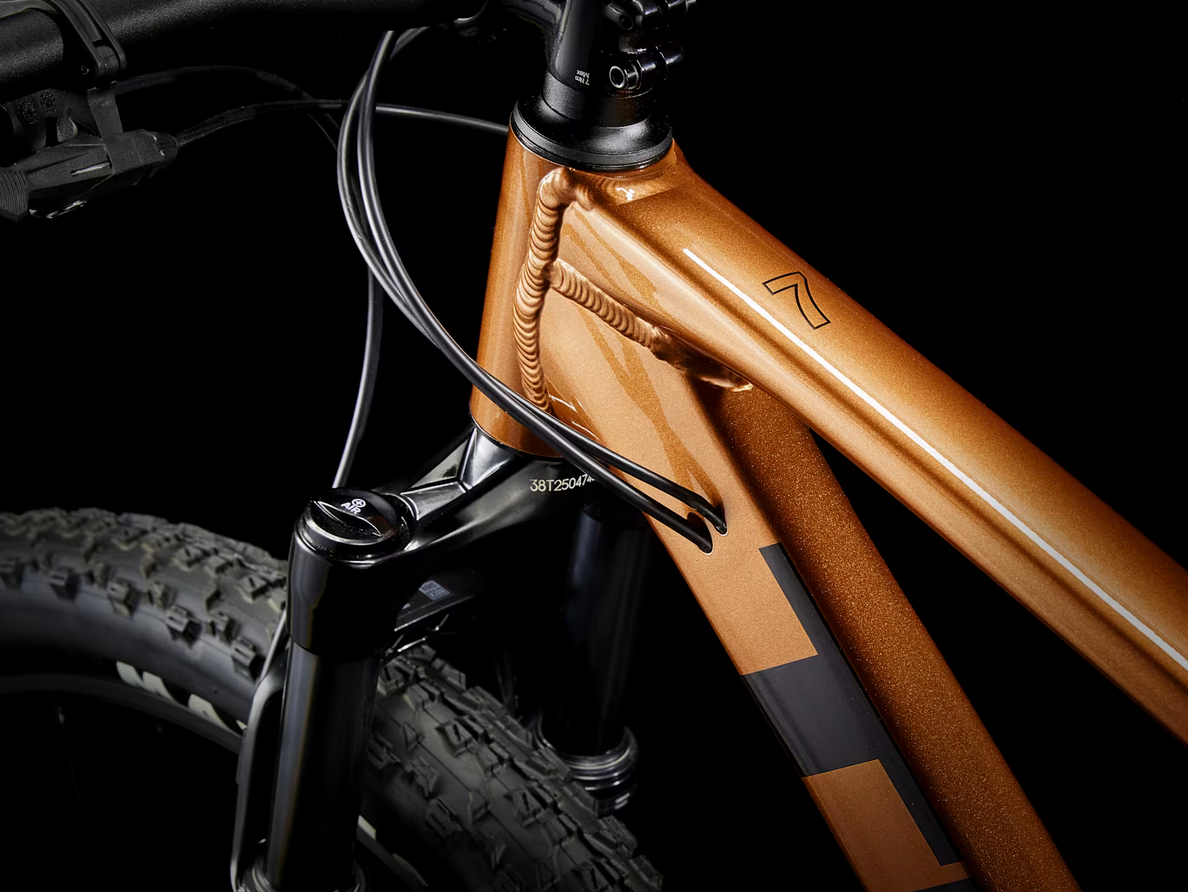

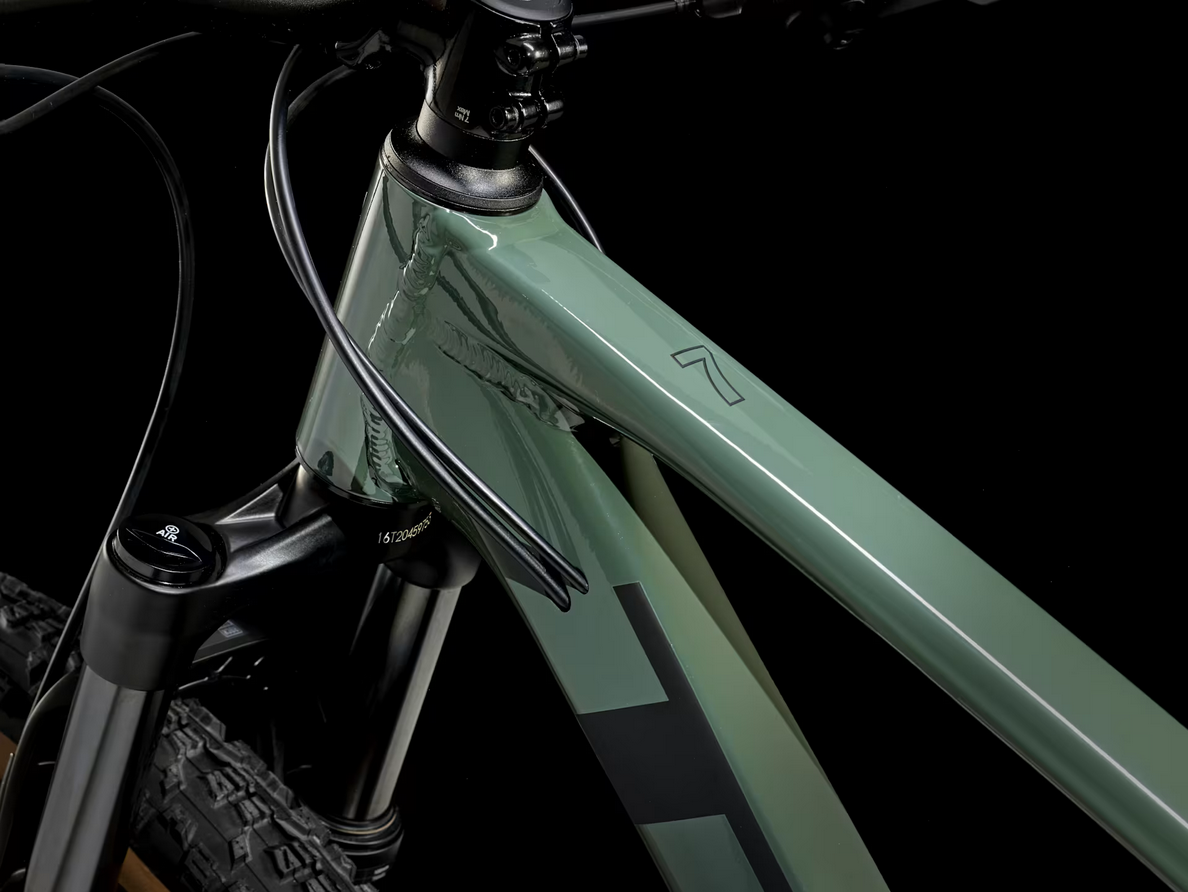

Frame :
*Size: XXS , XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
* Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

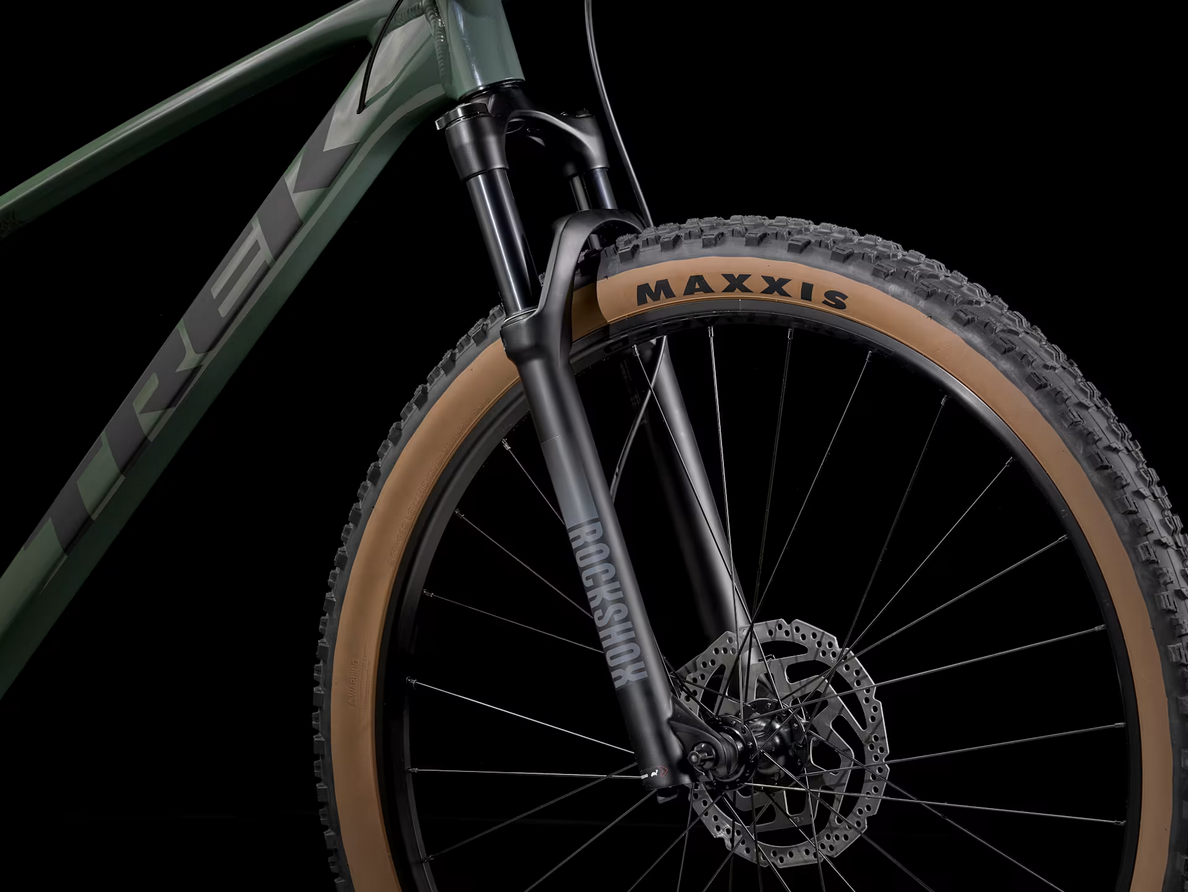

Fork :
*Size: XXS

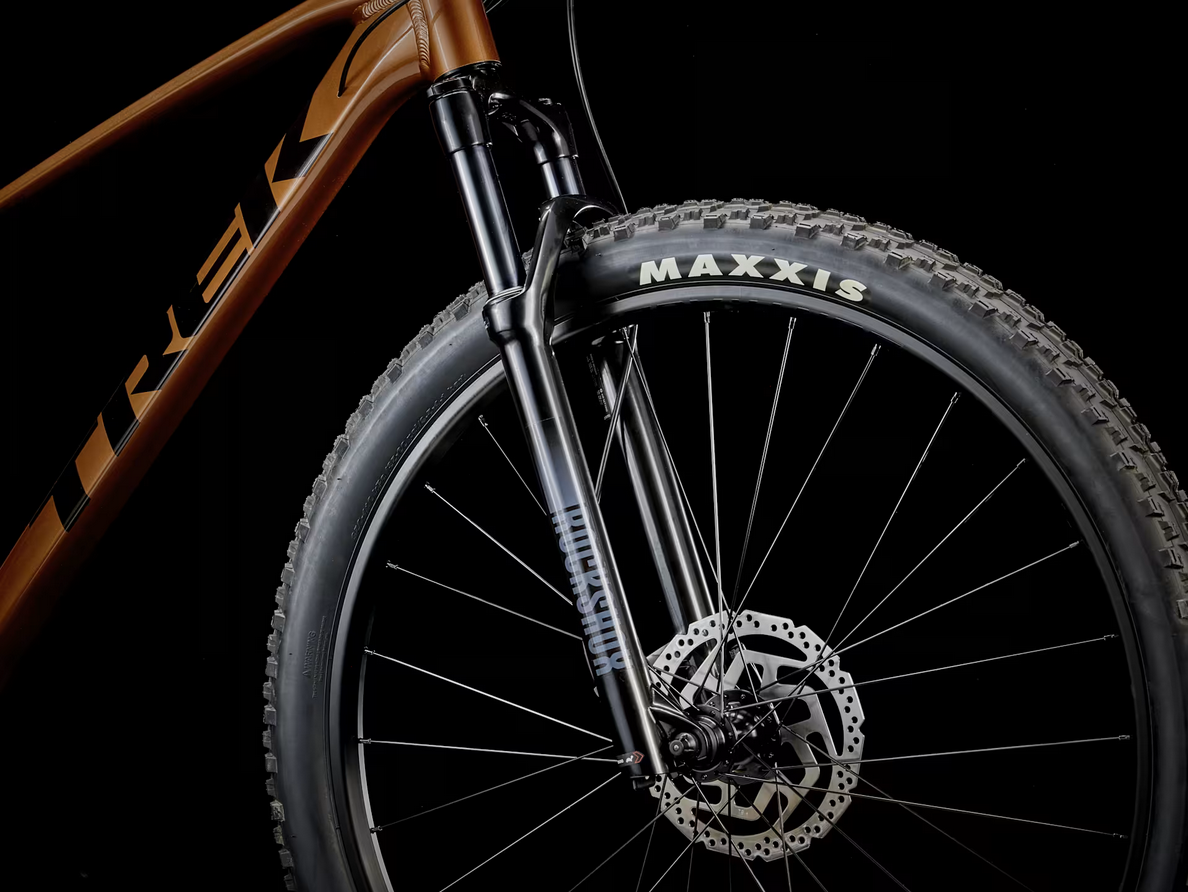

RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100 mm QR, 80 mm travel
*Size: XS , S , M , ML , L , XL , XXL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100 mm QR, 100 mm travel
Size: XS , S
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Hub front : Formula DC-20 LW, alloy, 6-bolt, 100x5mm
Hub rear : Formula DC-22LW, 6-bolt, Shimano 8/9/10
freehub, 135x5mm
Skewer rear : 173x5mm QR
Rim : Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve

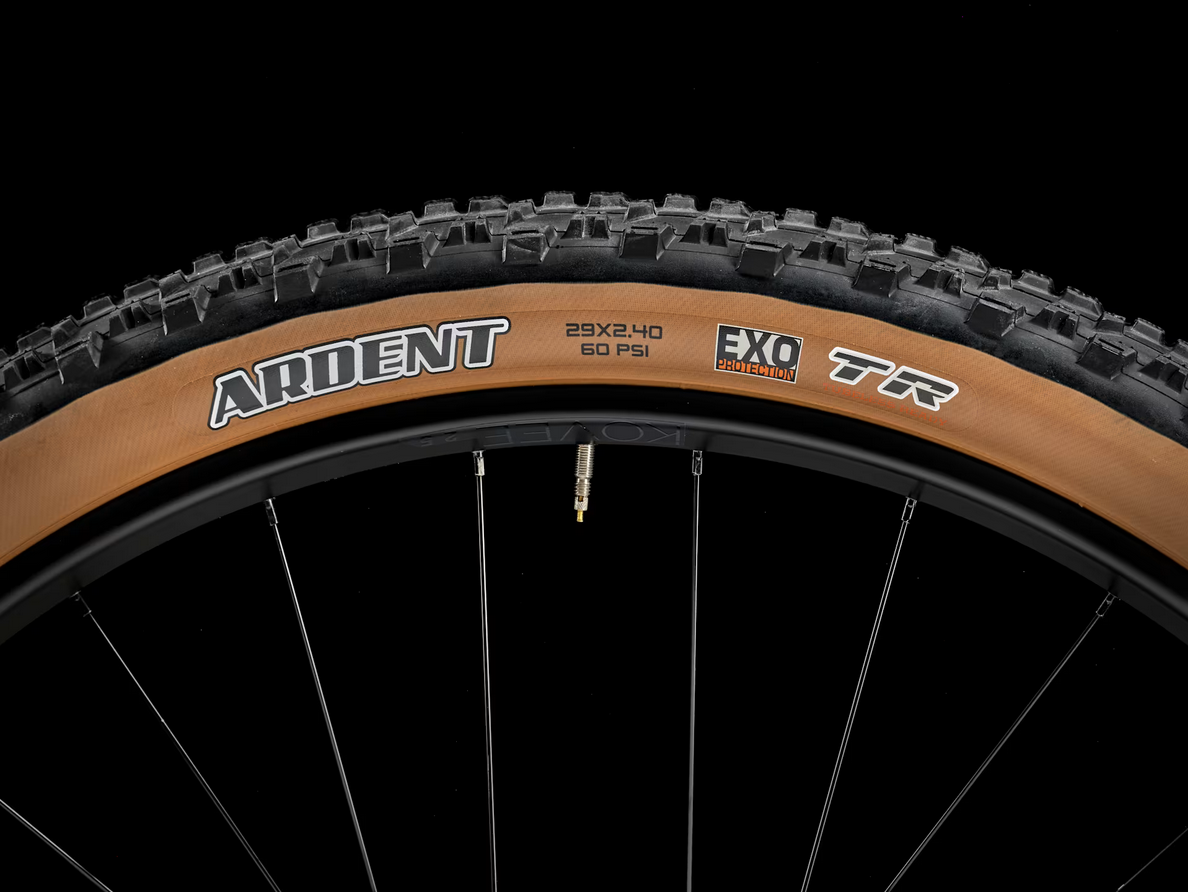

*Tire
Size: XXS
Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 26x2.40"
Size: XS , S
Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40"
Size: M , ML , L , XL , XXL
Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40"
Max tire size
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
Shifter : SRAM SX Eagle, 12 speed

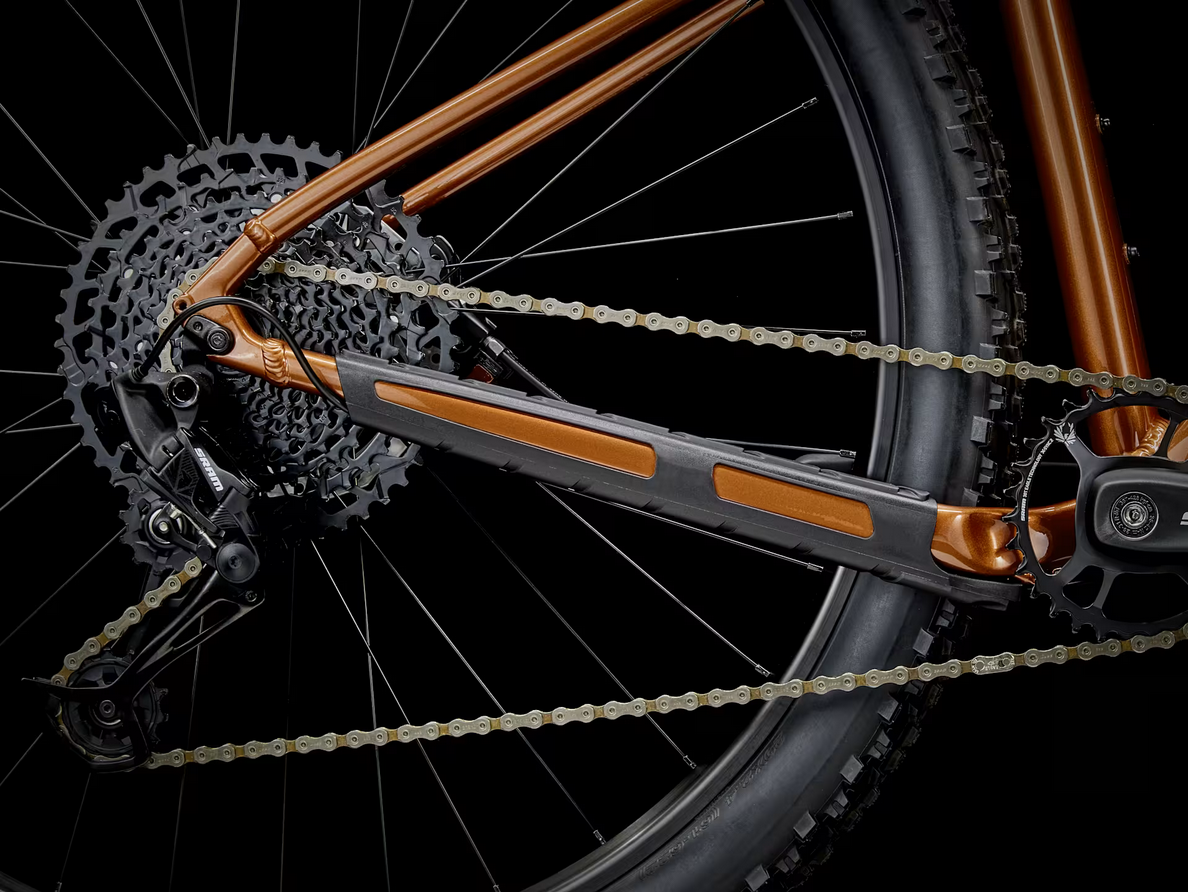

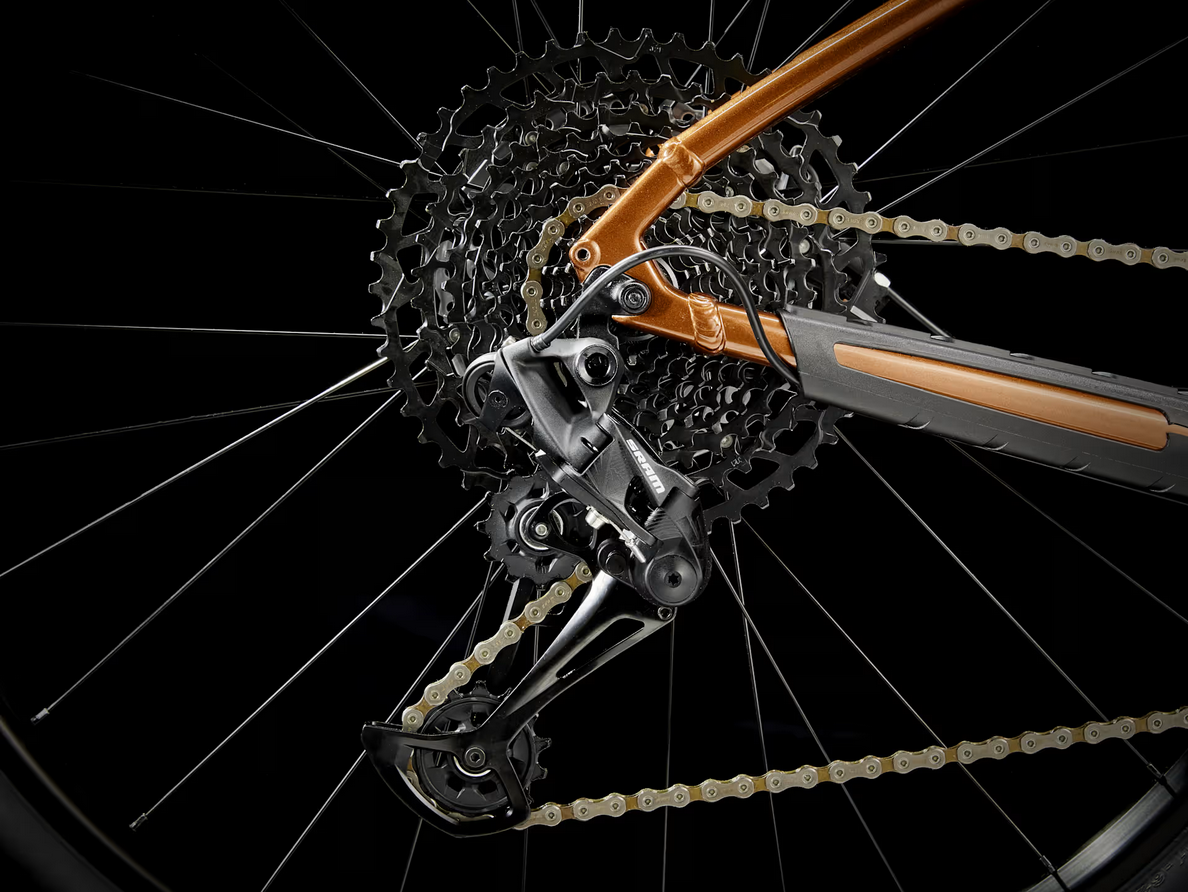

Rear derailleur : SRAM SX Eagle, 12 speed

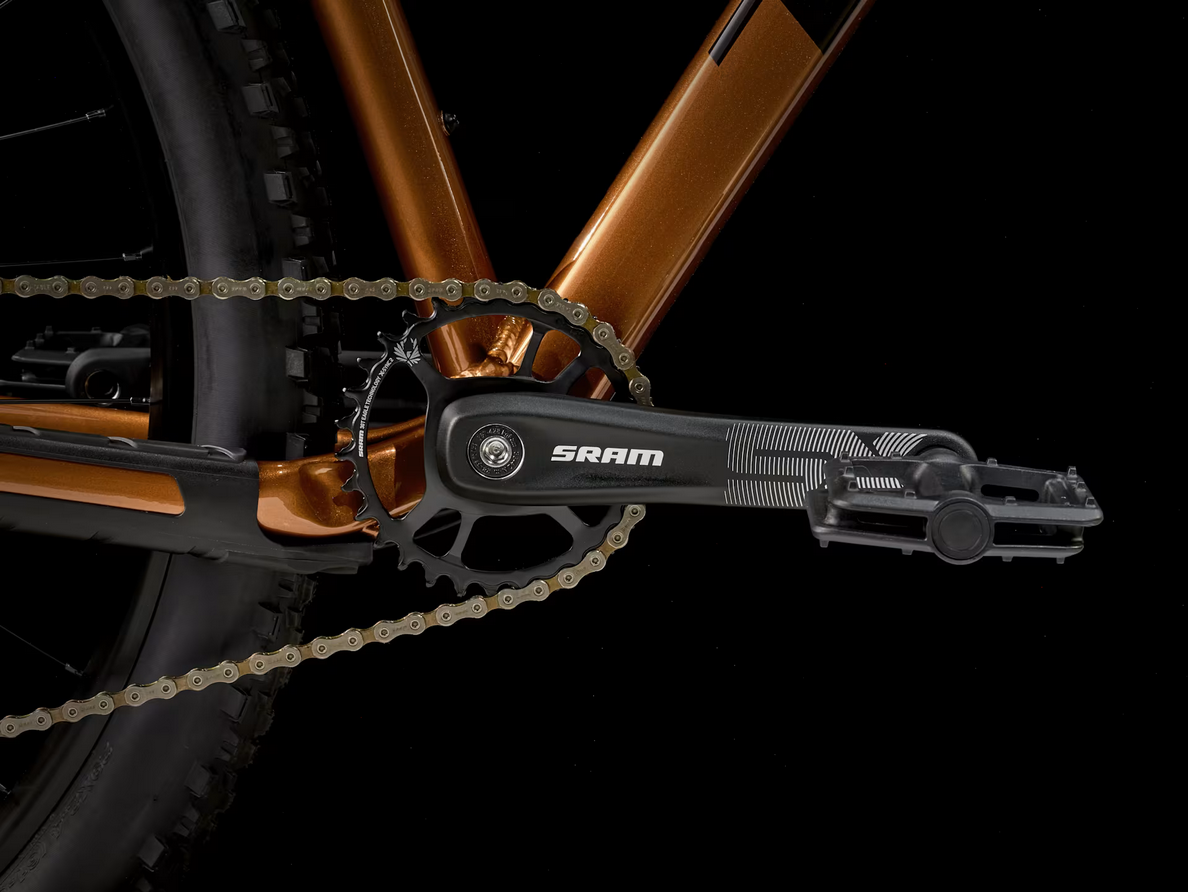

*Crank
Size: XXS
SRAM SX Eagle, 30T steel ring (49mm chainline), 155 mm length
Size: XS , S , M
SRAM SX Eagle, 30T steel ring (49mm chainline), 170 mm length
Size: ML , L , XL , XXL
SRAM SX Eagle, 30T steel ring (49mm chainline), 175 mm length
Bottom bracket : Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
Cassette : SRAM PG-1210 Eagle, 11-50, 12 speed
Chain : SRAM SX Eagle, 12 speed
Pedal : VP-536 nylon platform
Max chainring size 1x: See FAQ, 2x: 36T, 3x: 42T
Saddle : Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XXS , XS , S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
Size: M
TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Size: ML , L , XL , XXL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
*Handlebar
Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips : Bontrager XR Trail Comp, nylon lock-on
*Stem
Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Headset : Semi-integrated, 1-1/8"

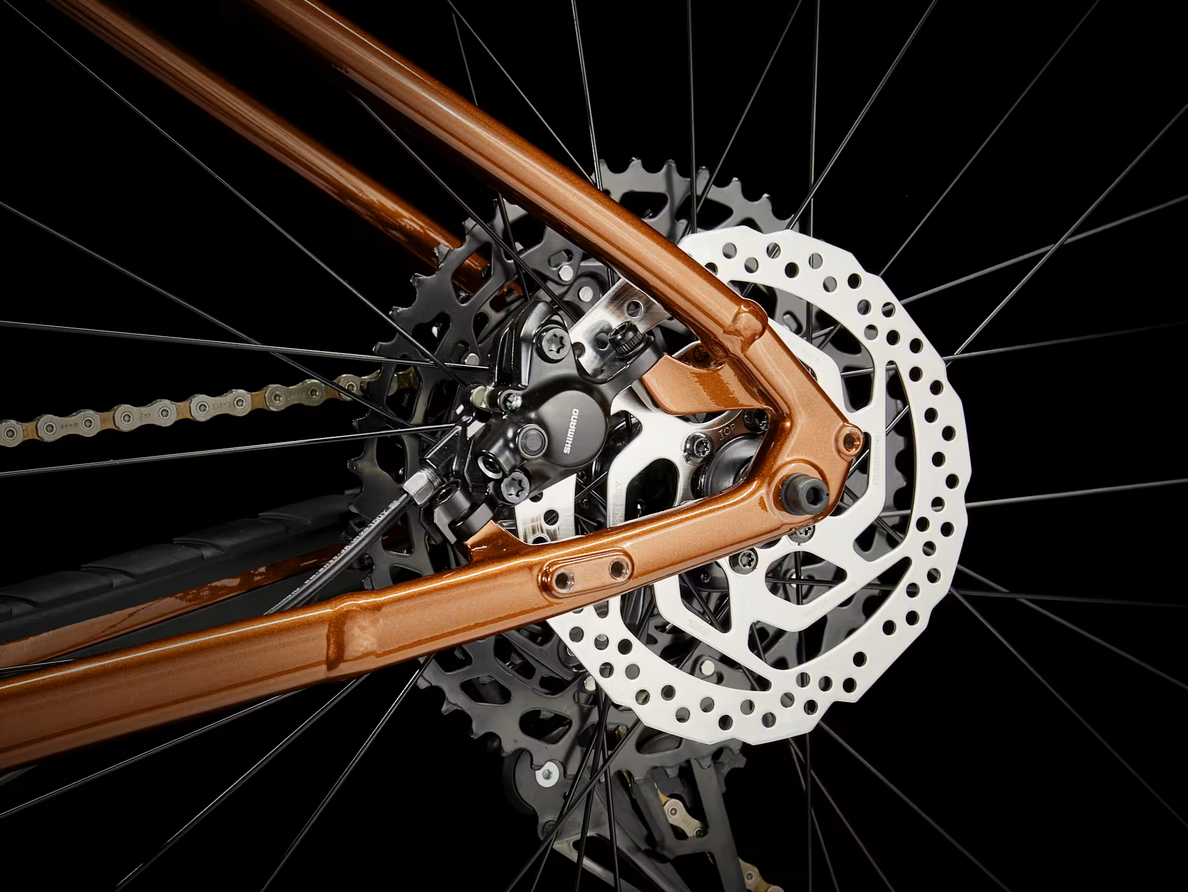

Brake : Shimano MT200 hydraulic disc
*Brake rotor
Size: XXS , XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180mm
Brake Set : Shimano MT200 hydraulic disc
Weight : M = 15.03 kg / 33.14 lbs (with TLR sealant, no tubes)
Weight limit : This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
